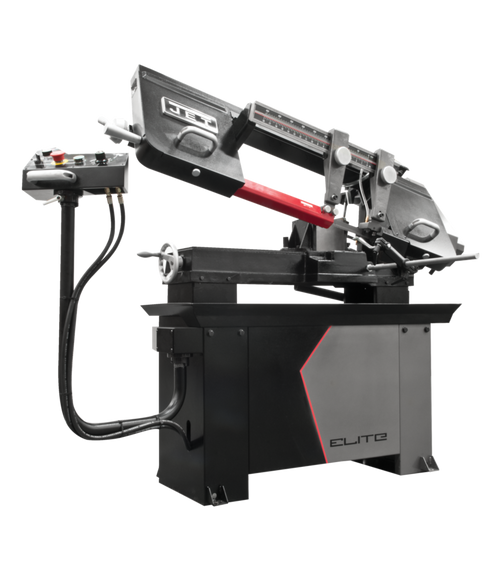

Jet EHB-8VS 8 x 13" Variable Speed Bandsaw (891015)

The Jet EHB-8VS 8 x 13" Variable Speed Bandsaw (891015) is a heavy-duty variable speed bandsaw designed for professional metalworking applications.

KEY FEATURES AND BENEFITS:

• Powerful Performance: A 1-1/2 HP motor delivers variable speeds from 82 to 310 SFM, allowing you to tackle a wide range of materials with optimal cutting efficiency.
• Large Capacity: The spacious table (13" x 22-1/2") accommodates larger workpieces, while the maximum cutting capacity of 8" x 13" at 90 degrees ensures versatility for various cutting tasks.
• Precise Cutting: Variable speed control provides fine-tuned blade speed adjustments for clean and accurate cuts in different materials.
• Safe Operation: The automatic blade shut-off switch and a fully guarded blade prioritize operator safety.
• User-Friendly Design: The swing-away control panel offers easy access to functions, while the hydraulic downfeed control ensures smooth material feeding. An integrated wash hose simplifies cleaning after use.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 115/230V, 1-Phase
• Blade Speeds: 82 - 310 SFM
• Cutting Capacity (W x D): 8 x 13 in.
• Table Capacity: 13 x 22-1/2 in.
• Blade Size: 1 x .035 x 114-1/2 in.
• Overall Dimensions: 62-1/2 x 23 x 48 in.
• Weight: 770 lbs.

HOW TO USE:

1. Setup: Secure the material in the vise and adjust the table height for optimal cutting position. Ensure the blade guard is in place.
2. Power On: Turn on the saw and allow the blade to reach the desired speed indicated by the speed chart for your material.
3. Cutting: Guide the material gently against the blade while maintaining slight downward pressure. The hydraulic downfeed can be adjusted for different materials.
4. Blade Adjustments: As you cut, use the tension gauge to ensure proper blade tension for clean cuts and optimal blade life.
5. Shut Down: Once finished, turn off the saw and allow the blade to come to a complete stop before raising the blade guard.

BENEFITS OF USING Jet EHB-8VS 8 x 13" Variable Speed Bandsaw (891015):

• Versatility: Cuts a wide range of metals with variable speed control and large capacity.
• Precision Cutting: Delivers clean and accurate cuts for professional results.
• Safety Features: Prioritizes operator safety with automatic blade shut-off and blade guard.
• User-Friendly: Offers convenient features like a swing-away control panel and an integrated wash hose.
• Durability: Built to last with a robust construction and powerful motor.

FEATURES:

• Variable speed control (82-310 SFM) for precise cutting in various materials.
• Large table capacity (13" x 22-1/2") for accommodating larger workpieces.
• Maximum cutting capacity of 8" x 13" at 90 degrees for versatility.
• Hydraulic downfeed control for smooth material feeding.
• Built-in coolant system for extended blade life and cleaner cuts.
• Swing-away control panel for easy access to functions.
• Automatic blade shut-off switch for operator safety.
• Quick-positioning vise for secure material clamping.
• Large handwheel with blade tensioning gauge for accurate blade tension.
• Integrated pressurized wash hose for easy machine cleaning.
• Includes coolant system, quick-positioning vise, adjustable material stop, and a bi-metal blade.
