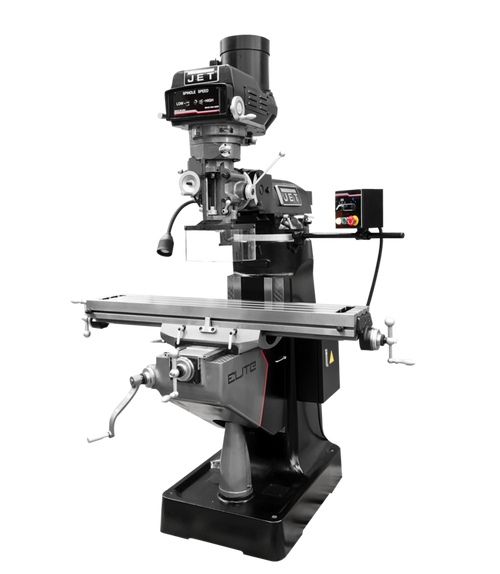

Jet ETM-949 Elite 9x49 Variable Speed Mill (894010)

The Jet ETM-949 Elite 9x49 Variable Speed Mill (894010) is a premium vertical milling machine designed for machinists and workshops demanding precision and reliability. This feature-rich mill boasts a variable speed motor (60-4,500 RPM) for tackling diverse materials, while the high-accuracy spindle assembly ensures exceptional results.

KEY FEATURES AND BENEFITS:

• Built to Last: Unlike some competitors, the JET Elite 9x49 prioritizes long-term performance. Hand-scraped ways minimize friction and maximize oil retention for smooth operation. The heat-treated and polished lead screws ensure precise table movements under load, while the seamless, one-piece steel quill delivers unwavering strength and accuracy. Additionally, certified Meehanite® castings maintain dimensional stability over time.
• Unmatched Precision: The JET Elite 9x49 takes precision milling seriously. The spindle utilizes class 7210 precision angular bearings, achieving industry-leading spindle taper runout of a mere 0.00012". The chromium molybdenum spindle itself is fully hardened for maximum durability and meticulously ground for tight tolerances.
• Operator Safety at the Forefront: The JET Elite 9x49 prioritizes operator safety. It adheres to strict CSA/CUS guidelines and boasts an electronic spindle brake to prevent accidental startups. The mounted control box conveniently houses major mill functions and features a prominent emergency stop button. For added protection, a spindle safety guard and stainless steel Y-axis way cover are included.
• Additional Highlights:
  • Large worktable (9" x 49") for accommodating various projects
  • Automatic lubrication system ensures smooth operation every 30 minutes
  • Double nut design eliminates table and saddle backlash for precise lateral movements
  • Variable speed pulleys minimize vibration and ensure smooth speed transitions

SPECIFICATIONS:

• Product Name: Jet ETM-949 Elite 9x49 Variable Speed Mill (894010)
• Variable Speed Motor: 60-4,500 RPM
• Spindle Bearings: Class 7210 precision angular bearings
• Spindle Taper Runout: 0.00012"
• Spindle Material: Chromium molybdenum, fully hardened
• Table Size: 9" x 49"
• Lubrication System: Automatic, every 30 minutes
• Backlash Elimination: Double nut design for table and saddle

HOW TO USE:

• Ensure the mill is placed on a stable surface in your workshop.
• Adjust the variable speed pulleys as needed for the material and operation.
• Load your workpiece onto the large worktable, securing it properly.
• Set the desired spindle speed and engage the automatic lubrication system.
• Operate the mill using the mounted control box, utilizing safety features like the spindle brake and emergency stop button when necessary.

BENEFITS OF USING JET ETM-949 ELITE 9X49 VARIABLE SPEED MILL (894010):

• Exceptional precision and reliability for demanding machining tasks.
• Versatile variable speed motor for handling diverse materials.
• Durable construction and precision components ensure long-term performance.
• Comprehensive safety features enhance operator protection.
• Efficient design with automatic lubrication and backlash elimination for smooth operations.

FEATURES:

• Variable speed motor (60-4,500 RPM) for versatility
• High-accuracy spindle assembly with class 7210 precision angular bearings
• Hand-scraped ways and heat-treated lead screws for smooth operation
• Electronic spindle brake and emergency stop for operator safety
• Large worktable (9" x 49") with stainless steel Y-axis way cover
