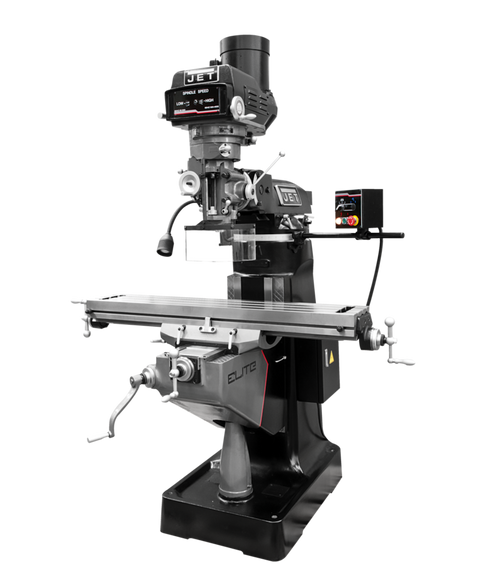

Jet ETM-949 Mill 3-Ax Newall DP700(Quill) DRO Servo XY Pwrfds (894226)

The Jet ETM-949 Mill 3-Axis Newall DP700 (Quill) DRO Servo XY Powerfeeds (894226) features a high-performance spindle, digital readouts (DRO), and servo motors for X and Y-axis control, offering exceptional precision and reliability for demanding milling tasks.

KEY FEATURES AND BENEFITS:

• Unmatched Accuracy:
  • Industry-leading spindle taper runout of 0.00012" thanks to precision angular bearings.
  • Hand-scraped ways ensure smooth table travel and minimize play for optimal control.
  • Heat-treated and polished lead screws deliver precise table movements.
• Built for Durability:
  • Fully hardened chromium molybdenum spindle offers exceptional strength and wear resistance.
  • Seamless, one-piece steel quill is induction hardened and chromed for increased rigidity and accuracy.
  • Double nut design on the table eliminates backlash for precise lateral movements.
  • Automatic lubrication system extends machine life and optimizes performance.
• Enhanced Functionality:
  • Newall DP700 DRO system provides real-time digital readouts on all three axes (quill, X, Y) for accurate positioning.
  • Servo motors on the X and Y-axis enable automated control for efficient and repeatable machining.
  • Variable speed control allows adjustment of the spindle speed to match the material and application.
• Operator Safety:
  • Included spindle safety guard protects users from accidental contact.
  • Conveniently located emergency stop button ensures quick machine shutdown when needed.
• Additional Features:
  • Spacious table size (9" x 49") accommodates a wide range of workpieces.
  • Versatile R-8 spindle taper offers compatibility with various tooling options.
  • Wide speed range (60 - 4,500 RPM) provides flexibility for different materials.
  • Generous quill travel (5") expands machining capabilities.
  • Durable Meehanite castings ensure long-lasting performance.
  • Pre-wired for 230V operation simplifies setup.

SPECIFICATIONS:

• Spindle runout: 0.00012"
• Table size: 9" x 49"
• Spindle taper: R-8
• Variable speed range: 60 - 4,500 RPM
• Powerfeeds: X and Y axes
• Digital Readout: Newall DP700 (3-axis)
• Lead screws: Heat-treated and polished
• Construction: Meehanite castings, Chromium Molybdenum spindle
• Lubrication: Automatic lubrication system
• Quill travel: 5"
• Pre-wired for: 230V operation

HOW TO USE:

• Set up the milling machine on a stable surface.
• Ensure the workpiece is securely clamped onto the table.
• Turn on the machine and adjust the variable speed control to match your material and project requirements.
• Use the Newall DP700 DRO to position the spindle accurately.
• Activate the servo-controlled X and Y-axis powerfeeds to automate movements.
• Monitor the milling process and make adjustments as needed.
• Utilize the automatic lubrication system to maintain smooth operation.
• Use the spindle safety guard and emergency stop button to ensure operator safety.
• Press the emergency stop button in case of any unforeseen issues.

BENEFITS OF USING JET ETM-949 MILL 3-AXIS NEWALL DP700 (QUILL) DRO SERVO XY POWERFEEDS (894226):

• Achieve high-precision milling with tight tolerances.
• Enhanced positioning accuracy with the Newall DP700 DRO.
• Reduced operator fatigue and increased productivity with automated movements.
• Extended machine lifespan due to superior oil retention and lubrication.
• Increased safety features for operator protection.

FEATURES:

• Precision spindle assembly for accurate milling.
• Advanced digital readout system for precise positioning.
• Automated power feeds for effortless control.
• Durable construction with hardened and ground table.
• Enhanced oil retention and smooth operation with hand-scraped ways.
• Variable speed control for material-specific adjustments.
• Safety features including spindle guard, electronic brake, and emergency stop.
