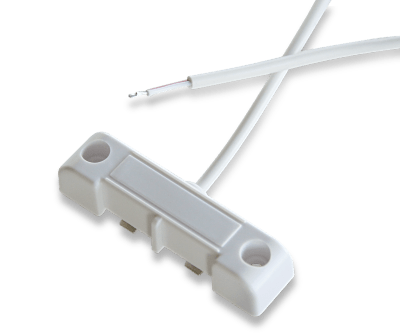

Level Sense DC Floor Water Leak Sensor (LS-LEAK-10M)

Level Sense DC Floor Water Leak Sensor (LS-LEAK-10M) is a practical and effective solution for detecting the presence of water on floors. Designed with a focus on simplicity and reliability, this sensor can be easily integrated into a variety of systems, from home security setups to custom electronics projects. Its fundamental function is to identify water accumulation, providing an early warning to help mitigate potential water damage.

KEY FEATURES AND BENEFITS:

• Offers a straightforward approach to water leak detection.
• When water bridges the gap between its two metal pads, the sensor's electrical characteristics change, transitioning from an open circuit to a resistive one (approximately 1.4MΩ, varying with water conductivity).
• The change can then be monitored by connected devices.
• The inclusion of a generous 30-foot cable offers flexibility in placement, allowing you to position the sensor in areas most susceptible to leaks.
• Its compatibility with a range of voltages (5Vdc to 12Vdc) makes it versatile for different power sources.
• Robust ABS housing ensures durability in typical indoor environments.
• Easy wiring (red to positive, white to negative) simplifies the connection process.
• Suitable for popular platforms like Arduino and Raspberry Pi, enabling custom smart home and monitoring solutions.

SPECIFICATIONS:

• Size: L64 * W15.6 * H12.7 mm
• Housing: ABS, white
• Working Voltage: 5Vdc - 12Vdc
• Voltage: 24Vdc
• Working Current: 0.5 Amp
• Temperature: 14⁰F to 150⁰F (-10℃ to 65℃)
• Cable Length: 30 Feet
• Wiring: Red to Positive, White to Negative (Ground)

HOW TO USE:

• Placement: Position the Level Sense Water Leak Sensor on the floor in the area you want to monitor for leaks. Ensure the two metal pads on the sensor's surface are in direct contact with the floor.
• Wiring (for Alarm/Security Systems): Connect the red wire of the sensor to the designated positive input terminal of your alarm system or dialer. Connect the white wire to the corresponding negative (ground) terminal. Refer to your alarm system's manual for specific wiring instructions.
• Wiring (for Arduino/Raspberry Pi - Analog Input): Connect the red wire to a positive voltage source (e.g., 5V on Arduino). Connect the white wire to an analog input pin on your microcontroller. It's often recommended to use a pull-down resistor (around 5MΩ) between the analog input pin and ground to establish a defined low state when no water is present. Monitor the analog voltage reading to detect changes indicating water.
• Wiring (for Arduino/Raspberry Pi - Digital Input): Configure a digital input pin on your microcontroller as a "PULL UP" input. Connect the white wire of the sensor to this digital input pin. Connect the red wire to ground. When water is present, it will pull the input pin to ground, indicating a leak.
• Testing: Once connected, simulate a leak by placing a small amount of water across the two metal pads of the sensor. Verify that your connected system (alarm, microcontroller) responds appropriately to the change in the sensor's state.

BENEFITS OF USING THE LEVEL SENSE DC FLOOR WATER LEAK SENSOR (LS-LEAK-10M):

• Provides a proactive approach to safeguarding your property and electronic projects.
• Early detection of water leaks can prevent significant damage to floors, walls, and valuable equipment, potentially saving you considerable repair costs.
• Simple integration with existing alarm systems enhances your overall home security by adding an environmental monitoring layer.
• For DIY enthusiasts and makers, its compatibility with platforms like Arduino and Raspberry Pi offers a foundation for creating custom water detection and alert systems tailored to specific needs.
• The extended 30-foot cable offers flexibility in sensor placement, allowing monitoring of hard-to-reach or expansive areas.
• Reliable detection mechanism provides peace of mind, knowing that potential water hazards can be identified quickly.

FEATURES:

• Responds to water contact by changing its electrical resistance.
• Equipped with a long, 30-foot cable for versatile installation.
• Designed with a compact and low-profile white ABS housing.
• Operates within a safe and common voltage range (5Vdc - 12Vdc).
• Simple two-wire connection (red for positive, white for ground).
• Suitable for integration with standard alarm panels and dialers.
• Well-suited for custom monitoring projects using Arduino and Raspberry Pi.
• Detects water presence through direct contact with its metal sensing pads.
