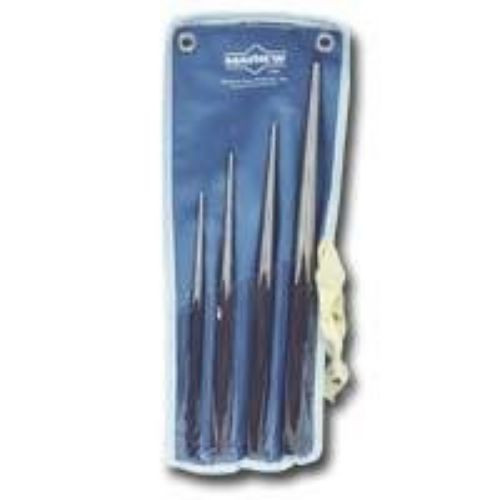

Mayhew 4-Pieces Black Oxide Finish Aligning Punch Kit (62235)

$43.25 Save 25
$34.60
(You save $8.65 )
Adding to cart… The item has been added
MPN:
SKU:
JB-MAY-62235  |
UPC:
045256622354  |
Shipping:
Calculated at Checkout
  • Icon 1 Free
    shipping
    Orders Over $99
  • Icon 2 Global
    Shipping
    Fast delivery
  • Icon 3 60-Day
    Return
    Hassle-free
Free Shipping
Adding to cart… The item has been added
  • Description

    The Mayhew 4-Pieces Black Oxide Finish Aligning Punch Kit (62235) is an essential collection of tools engineered for precise hole alignment. Crafted with meticulous attention to detail, this kit ensures that holes in various materials, particularly metal components, are perfectly matched before the insertion of fasteners like rivets, pins, or bolts. Whether you're a professional technician, a seasoned mechanic, or a dedicated DIY enthusiast, this American-made kit provides the accuracy and reliability needed for critical assembly tasks. Each punch in the set is designed to offer optimal performance and a long service life, standing as a testament to Mayhew's heritage as a leading manufacturer of punches and chisels since 1856.

    KEY FEATURES AND BENEFITS:

    • Precision Alignment: This 4-piece set includes punches with varied point and shank sizes, along with distinct taper lengths, ensuring perfect alignment of holes for rivets, pins, or bolts.
    • Targeted Functionality: Specifically designed to align pre-existing holes in multiple components, facilitating smooth insertion of fasteners without forcing.
    • Enhanced Strength: Each punch is crafted from alloy steel and undergoes a heat-treatment process along its entire length, significantly boosting its strength, durability, and resistance to bending or breaking under load.
    • Corrosion Protection: A protective black oxide finish is applied to each punch, providing an effective barrier against rust and corrosion, thereby extending the tool's operational life and maintaining its appearance.
    • American Craftsmanship: Proudly made in the USA of U.S. and global components, the kit reflects Mayhew's long-standing commitment to quality and manufacturing excellence, backed by ISO 9001:2015 certification.

    SPECIFICATIONS:

    • Product Weight: 2.01 lbs.
    • Product Length: 14"
    • Product Width: 3.25"
    • Product Height: 0.75"
    • Brand: Mayhew
    • Finish Type: Black Oxide
    • Included in the Kit:
      • Item 22003: Line-Up Punch 1/4" x 12"
      • Item 22010: Line-Up Punch 1/8-3mm" x 7 7/8"
      • Item 22011: Line-Up Punch 5/32-4mm" x 9"
      • Item 22012: Line-Up Punch 3/16" x 10"

    HOW TO USE:

    1. Identify the Holes: Begin by identifying the holes in the components you need to align. Ensure they are generally in proximity and roughly match in size.
    2. Select the Right Punch: Choose the aligning punch from the kit that has a tip size slightly smaller than or equal to the diameter of the holes you intend to align. The varied lengths and tapers in the kit allow for selection based on depth and access.
    3. Insert the Punch: Carefully insert the chosen aligning punch into one of the holes.
    4. Align Components: While the punch is inserted, gently manipulate the components until the punch can slide through the corresponding hole(s) in the other part(s). The tapered design of the punch will help guide the holes into precise alignment.
    5. Verify Alignment: Once the punch passes through all layers smoothly, the holes are aligned. Do not use a hammer to drive the aligning punch, as it is not designed for this purpose.
    6. Insert Fastener: With the holes aligned, you can now carefully remove the aligning punch and immediately insert your rivet, pin, or bolt. For multi-fastener applications, it is often useful to leave one or more aligning punches in place to maintain alignment while inserting the first fasteners.

    BENEFITS OF USING MAYHEW 4-PIECES BLACK OXIDE FINISH ALIGNING PUNCH KIT (62235):

    • Improved assembly accuracy ensures secure and reliable fastening, reducing errors and improving workflow.
    • Helps avoid component damage by eliminating the need to force misaligned fasteners.
    • Speeds up the assembly process, making it easier to insert fasteners accurately on the first try.
    • Supports the structural integrity of the final assembly by maintaining correct alignment.
    • Adapts to many tasks such as metalworking, car repair, construction, and equipment maintenance.

    FEATURES:

    • Set includes four aligning punches in a variety of commonly used sizes.
    • Constructed from high-grade alloy steel for strength and reliability.
    • Heat-treated through the entire punch for added durability under pressure.
    • Black oxide finish offers corrosion protection and a matte, non-glare look.
    • Varying lengths and taper designs suit different alignment challenges.
    • Hexagonal body shape provides better grip and control during use.
    • Engineered for alignment only—ideal for joining components, not piercing.
    • Compact dimensions (14" x 3.25" x 0.75") make for easy storage and transport.
    • Made by Mayhew, a trusted name in American-made hand tools since 1856.
    • Includes a storage pouch to keep tools organized and protected.
