Description

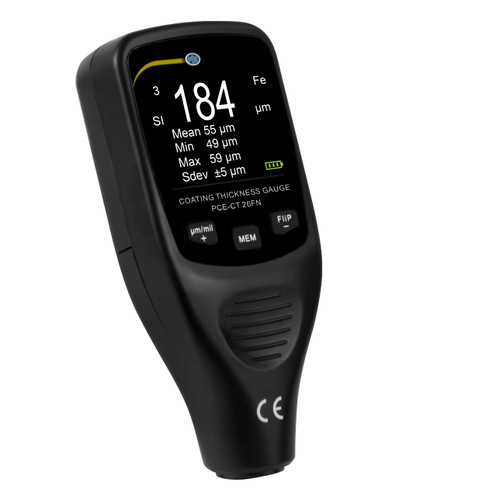

PCE Instruments Coating Thickness Gauge (PCE-CT 26FN) is a precision instrument designed for measuring non-magnetic coatings on ferrous and non-ferrous metals. With a large measuring range of up to 1250 μm, this device is ideal for automotive inspections, industrial coatings, and quality control applications.
The device features a rotatable OLED display for easy readability, a wear-resistant sensor, and a V-groove for measuring pipes. It enables single-handed operation and delivers highly accurate readings. The coating thickness gauge is compatible with various materials, including lacquer, plastics, enamel, and galvanized coatings.
- Specifications and Dimensions
- Measuring Range: 0 ... 1250 μm (0 ... 49.2 mils)
- Resolution: 1 μm (0.039 mils)
- Accuracy: ±(3% + 2 μm) or ±(3% + 0.079 mils)
- Measurable Substrates: Ferrous (Fe) and Non-Ferrous (NFe)
- Smallest Measuring Surface: 5 x 5 mm / 0.2 in x 0.2 in
- Smallest Radius of Curvature: Convex 3 mm (0.1 in), Concave 50 mm (2 in)
- Minimum Base Material Thickness: Fe: 0.5 mm / 0.02 in, NFe: 0.3 mm / 0.01 in
- Display: OLED Display
- Power Supply: 2 x AAA batteries (1.5V)
- Operating Temperature: 0 ... 50°C / 32 ... 120°F
- Dimensions: 100 x 52 x 29 mm / 4 x 2 x 1.1 in
- Weight: Approx. 68 g / <1 lb (without batteries)
- Key Features and Benefits
- Measures non-magnetic coatings on ferrous and non-ferrous metals
- Rotatable OLED display for easy reading from different angles
- Wear-resistant sensor for long-lasting performance
- V-groove for measuring coatings on pipes and curved surfaces
- One-handed operation with fast and precise measurement capabilities
- Calibration foils included for accurate adjustments
- Compact and lightweight design for convenient portability
- ISO calibration available upon request
- Includes
- 1 x PCE-CT 26FN Coating Thickness Gauge
- 2 x AAA Batteries (1.5V)
- 1 x Set of Calibration Foils (5 Pieces)
- 1 x Fe Standard Block
- 1 x NFe Standard Block
- 1 x Transport Case
- 1 x User Manual
