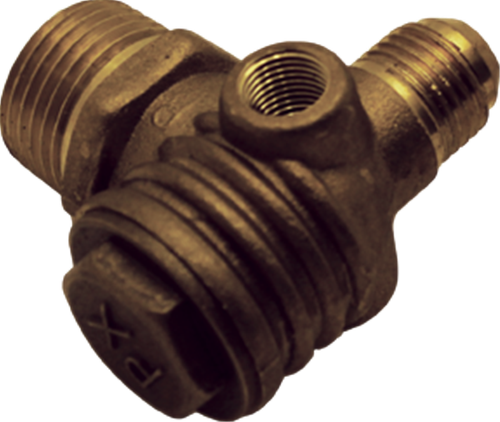

Phoenix USA AC12V3 Compressor Check Valve Replacement (PAC12V3CV)

The Phoenix USA AC12V3 Compressor Check Valve Replacement (PAC12V3CV) is a vital component designed specifically for the Phoenix USA AC12V3 portable 12-volt air compressor with a 3-gallon tank. This replacement part ensures the efficient and reliable operation of your compressor by regulating airflow into the storage tank and preventing unwanted backflow. Maintaining a properly functioning check valve is crucial for optimal compressor performance and longevity.

KEY FEATURES AND BENEFITS:

• This replacement check valve directly replaces the original check valve in your Phoenix USA AC12V3 compressor.
• It allows compressed air to flow unidirectionally into the air tank, enabling pressure buildup while preventing backflow when the compressor is off.
• Its one-way functionality is crucial for maintaining consistent air pressure and reducing the workload on the compressor motor during startup.
• Replacing a faulty check valve with the PAC12V3CV can resolve common compressor issues such as overheating, continuous running, or failure to reach and hold the correct pressure.

SPECIFICATIONS:

• Product Name: Phoenix USA Rep Pt Check Valve For AC12V3
• Part Number: PAC12V3CV (PHX-PAC12V3CV)
• Compatibility: Phoenix USA AC12V3 Portable 12-Volt Air Compressor (3-Gallon Tank)
• Function: One-way airflow control; prevents backflow of compressed air
• Approximate Weight: 0.3 lbs
• Approximate Dimensions: 2.16" (Length) x 2.16" (Width) x 1.4" (Height)

HOW TO USE:

1. Safety First: Ensure the air compressor is completely disconnected from its power source (usually a 12V DC connection). Also, release all remaining air pressure from the tank before proceeding.
2. Locate the Check Valve: The check valve is usually situated where the air line from the compressor cylinder connects to the air tank. It may have a hexagonal or other shaped body for wrenching.
3. Disconnect Existing Connections: Carefully loosen and disconnect any air lines or fittings attached to the old check valve. Note the orientation of the old valve for correct installation of the new one.
4. Remove the Old Check Valve: Using an appropriate wrench, carefully unscrew and remove the old check valve from the compressor or tank fitting.
5. Prepare the New Check Valve: Ensure the threads of the new PAC12V3CV check valve are clean. You may need to apply a small amount of thread sealant or Teflon tape to ensure a proper airtight seal during installation.
6. Install the New Check Valve: Carefully screw the new check valve into the designated port. Tighten it securely with a wrench, but avoid over-tightening, which could damage the valve or the fitting. Ensure it is oriented correctly, typically with an arrow or indication showing the direction of airflow (into the tank).
7. Reconnect Air Lines: Reattach any air lines or fittings that were disconnected in step 3. Ensure these connections are also secure and airtight.
8. Pressure Test: Once everything is reconnected, carefully reconnect the air compressor to its power source and turn it on. Allow it to build pressure in the tank and check for any air leaks around the newly installed check valve and its connections. If leaks are detected, turn off the compressor, disconnect power, release air pressure, and re-tighten the connections as needed.

BENEFITS OF USING THE PHOENIX USA AC12V3 COMPRESSOR CHECK VALVE REPLACEMENT (PAC12V3CV):

• Utilizing the genuine Phoenix USA PAC12V3CV replacement check valve ensures proper and efficient operation of your AC12V3 air compressor.
• The check valve prevents backflow, helping to maintain consistent air pressure within the tank and reducing the workload on the compressor motor.
• It contributes to faster tank fill times and reliable air availability, extending the compressor’s lifespan.
• Replacing a worn or faulty check valve with this specific replacement part can restore your compressor's performance and prevent further damage to other components.

FEATURES:

• Engineered for direct compatibility with the Phoenix USA AC12V3 compressor model.
• Facilitates unidirectional airflow into the air storage tank.
• Acts as a positive seal to prevent pressurized air from escaping back into the compressor.
• Helps maintain consistent and optimal tank pressure levels.
• Reduces unnecessary cycling and potential overheating of the compressor motor.
• Designed as a durable replacement part to ensure long-term reliability of the air system.
• Relatively straightforward to install with basic tools.
