Description
The Phoenix USA DOT Sim Set NH8495 w/ Air Max AMH1 (NH8495M) provides a comprehensive solution for enhancing the aesthetics and practicality of your commercial vehicle's wheels. This set includes four high-quality polished stainless steel wheel simulators specifically designed for trucks equipped with 19.5" diameter by 6.75" wide dual-rear-wheel configurations featuring an 8-lug pattern on a 275mm bolt circle and 22mm lug studs. The inclusion of the Air Max AMH1 braided stainless steel valve extension kit further improves functionality by simplifying the process of tire inflation for the inner rear wheels. This complete package offers a significant upgrade in both appearance and ease of maintenance.
KEY FEATURES AND BENEFITS:
- DOT Compliant, Bolt-On Installation: Designed to meet Department of Transportation standards, these simulators offer a secure and straightforward bolt-on installation process using your existing lug nuts.
- Premium Polished Stainless Steel Construction: Crafted from high-grade polished stainless steel, these simulators provide a long-lasting, rust-resistant finish that maintains its shine even under demanding conditions.
- Complete Set for Dual Rear Wheels: The kit includes a set of four simulators: two front covers with a dished design and two rear covers with a deeper dish to contour with the dual wheel assembly.
- Front Pop-Out Center Caps: The front simulators feature easily removable center caps, allowing quick and convenient access to the wheel hubs for maintenance without the need to detach the entire simulator.
- Air Max AMH1 Braided Stainless Valve Extensions Included: This kit comes with four durable braided stainless steel valve extensions designed specifically for the inner and outer rear wheels. These extensions mount securely using the wheel cover's jam nuts, making tire pressure checks and inflation significantly easier.
- Comprehensive Installation Package: The set includes all necessary mounting hardware, a dedicated installation tool, and a detailed instruction sheet to ensure a smooth and correct installation process.
- Improved Vehicle Appearance: Instantly elevates the visual appeal of standard steel wheels, providing a more professional and refined look for your truck.
- Enhanced Wheel Protection: Offers a degree of protection to the underlying steel wheels from road debris, dirt, and other environmental elements.
SPECIFICATIONS:
- Wheel Compatibility: 19.5" Diameter x 6.75" Width
- Lug Pattern: 8-Lug
- Bolt Circle Diameter (BC): 275mm
- Lug Stud Size: 22mm
- Original Equipment (OE) Lug Nut Hex Size Compatibility: 33mm
- Number of Hand Holes: 4
- Material: Polished Stainless Steel
- Mounting Type: Over-Lug, Bolt-On, Stud Mount
- Included Valve Extension Kit: Air Max AMH1 Braided Stainless Steel
- Vehicle Fitment:
- Chevrolet C4500, C5500, C6500 (2019–Current)
- Ford F650 (2004–Current)
- Freightliner M2 Series (2003–Current)
- International (Specific models and years from 1990–Current, verification recommended)
- Hino (Specific models and years from 2004–Current, verification recommended)

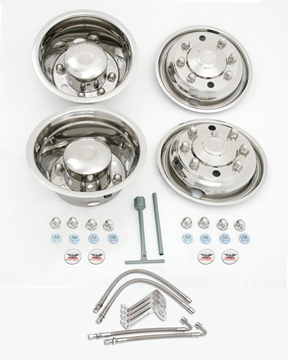

- Kit Contents: 2 Front Wheel Simulators, 2 Rear Wheel Simulators, Air Max AMH1 Valve Extension Kit (4 extensions with mounting hardware), Mounting Hardware for Simulators, Installation Tool, Instruction Sheet
HOW TO USE:
- Preparation: Ensure your truck's wheels are clean and cool before beginning the installation. Gather all components of the Phoenix USA DOT Sim Set and the included tools.
- Front Simulator Installation:
- Position the front wheel simulator against the wheel, aligning the lug holes. Note the dished design faces outwards.
- Using the provided mounting hardware (typically lug nut extensions or specific clamps), secure the simulator to the wheel by tightening the lug nuts or clamps evenly. Follow the torque specifications outlined in the instruction sheet if provided.
- Once the simulator is securely fastened, install the pop-out center cap by pressing it firmly into the designated opening.
- Rear Simulator Installation:
- Position the rear wheel simulator against the outer wheel, aligning the lug holes. Note the deeper dished design to accommodate the inner wheel.
- If installing the Air Max AMH1 valve extensions, attach the provided brackets to the simulator using the jam nuts.
- Thread the braided stainless steel valve extensions through the designated holes in the simulator and secure them to the valve stems of both the inner and outer rear tires. Ensure a tight and leak-free connection.
- Secure the rear simulator to the wheel using the provided mounting hardware, tightening the lug nuts or clamps evenly.
- Final Check: After installing all four simulators, double-check that all mounting hardware is secure and that the valve extensions (if installed) are properly connected and not kinked or obstructed. Ensure the simulators are firmly attached and do not interfere with wheel rotation. Refer to the instruction sheet for any specific torque requirements or additional steps.
BENEFITS OF USING PHOENIX USA DOT SIM SET NH8495 W/ AIR MAX AMH1 (NH8495M):
- Professional Appearance: Instantly transforms the look of your truck's wheels, projecting a more professional and well-maintained image.
- Simplified Tire Maintenance: The included Air Max AMH1 valve extension kit eliminates the difficulty of accessing the inner rear tire valves for pressure checks and inflation, saving time and effort.
- Long-Lasting Durability: The polished stainless steel construction ensures resistance to rust and corrosion, providing a lasting aesthetic upgrade.
- Easy Access for Hub Maintenance: The front pop-out center caps allow for quick inspection and servicing of wheel hubs without the need for complete simulator removal.
- Secure and Compliant Installation: The DOT-compliant design and bolt-on installation method ensure a safe and secure attachment to your wheels.
- Comprehensive Kit: Includes all necessary components for installation, eliminating the need for separate purchases.
- Vehicle-Specific Fit: Designed for specific truck models, ensuring a proper and aesthetically pleasing fitment.
FEATURES:
- Mirror-Polished Stainless Steel Finish: Provides a brilliant and easy-to-clean surface.
- Dished Front Covers: Designed to complement the front wheel assembly.
- Deep-Dished Rear Covers: Contoured to fit the dual rear wheel configuration.
- Accessible Front Hubs: Pop-out centers allow for convenient maintenance.
- Braided Stainless Steel Valve Extensions: Offer reliable and easy access to inner and outer rear tire valves.
- Robust Mounting System: Ensures a secure attachment to the wheels.
- Model-Specific Compatibility: Engineered for a precise fit on listed Chevrolet, Ford, Freightliner, International, and Hino trucks with 19.5" 8x275mm wheels and 22mm studs.
-
