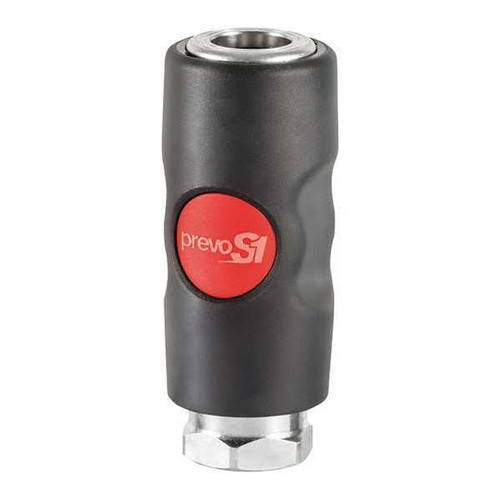

Prevost NPT 3/8" Automotive 3/8" ID Female Coupler (USI081202)

Connect your pneumatic tools and equipment with confidence and efficiency using the Prevost NPT 3/8" Automotive 3/8" ID Female Coupler (USI081202). This advanced air coupler is engineered for reliability, safety, and optimal performance in demanding automotive and industrial environments. Its innovative design streamlines your workflow while significantly enhancing operational safety. Made from a robust composite material with a steel inner core, this coupler provides a lightweight yet strong connection point for your air lines, resisting impacts and preventing scratches on delicate surfaces. Experience superior air flow and effortless, one-handed operation every time you connect or disconnect.

KEY FEATURES AND BENEFITS:

• Enhanced Safety System: Features a unique "one-push" button mechanism that allows for safe, one-handed disconnection and automatically purges air from downstream equipment (hoses, tools). This critical safety feature effectively prevents dangerous "hose whip" and sudden pressure releases, protecting operators and surrounding equipment.
• High Flow Performance: Engineered with a 3/8" internal diameter passage, this coupler maximizes air flow to your tools. This design minimizes pressure drops and bottlenecks, ensuring your pneumatic tools receive the optimal air volume for peak performance and efficiency.
• Lightweight Composite Construction: The coupler's body is crafted from a high-grade composite material, making it significantly lighter than traditional metal couplers. This reduces operator fatigue and enhances maneuverability, while also being non-marring and impact-resistant.
• Anti-Static Properties: The composite material is anti-static, preventing the buildup of static electricity. This is a crucial benefit in environments where static discharge could be a concern.
• Steel Inner Core: Despite its lightweight composite exterior, the coupler features a steel inner construction. This internal reinforcement ensures long-term durability and reliable performance under consistent use.

SPECIFICATIONS:

• Net Weight: 0.142 kg
• Flow Rate: 72 CFM (P = 87 PSI ,ΔP = 8.69 PSI)
• ID Passage: 3/8"
• Max. Output Pressure: 174 PSI
• Profile: AUTOMOTIVE
• Female Thread: NPT1/4
• Temperature Range: 5°F to 158°F
• Dimensions: A: 3.24 inches, B: 1.3 inches, C: 0.91 inches

HOW TO USE:

1. Preparation: Ensure your air compressor is off or the air line pressure is vented before connecting the coupler. Verify that your air tool or hose has a compatible Prevost TruFlate/Automotive style male plug.
2. Connecting the Plug: Firmly push the male plug of your air tool or hose directly into the Prevost USI081202 female coupler. You will hear a positive click, indicating a secure connection. Gently pull on the tool to confirm it's fully seated and locked.
3. Operating Air: Once connected, you can safely turn on your air compressor or open the air line valve. The coupler is now ready to supply air to your tool.
4. Disconnecting Safely (One-Push System): To disconnect, locate the push-button or ring on the coupler. While holding the tool or hose, push the button or ring. This action first vents the pressure from the downstream equipment.
5. Full Release: After the pressure is vented (you'll hear air escaping), push the button or ring again (or continue to hold it depending on the exact design) to fully release the male plug. The tool or hose can now be safely removed from the coupler.

BENEFITS OF USING PREVOST NPT 3/8" AUTOMOTIVE 3/8" ID FEMALE COUPLER (USI081202):

• Significantly improves workshop safety by preventing sudden hose disconnections.
• Contributes to increased productivity by ensuring optimal air tool performance.
• Extends the lifespan of hoses and tools by eliminating harsh "hose whip" stresses.
• Offers reliable air connections, reducing air leaks and maintaining system efficiency.
• Provides a comfortable, secure grip for seamless operation.

FEATURES:

• Push-button release for rapid, safe disconnections.
• Constructed from resilient, scratch-resistant composite material.
• Incorporates an internal steel core for structural integrity.
• Designed to be non-marring, protecting delicate surfaces.
• Features anti-static properties for safe use in various environments.
• Supports high air flow rates for demanding pneumatic applications.
• Compatible with standard Automotive (TruFlate) profile plugs.
• Operates effectively across a wide range of temperatures.
• Lightweight design for reduced user fatigue.
