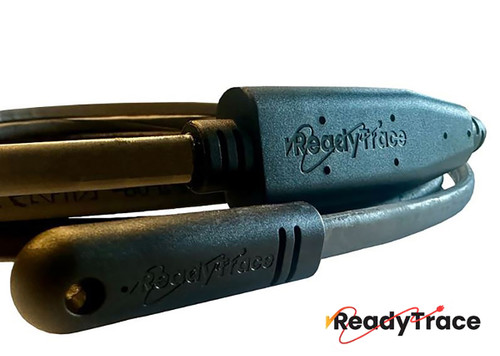

ReadyTrace 24 ft. Self-Regulating Heat Trace Cables (READYTRACE-024)

ReadyTrace 24 ft. Self-Regulating Heat Trace Cables (READYTRACE-024) is a dependable solution designed to protect pipes, roofs, and gutters from the damaging effects of freezing temperatures, ice, and snow. Proudly designed and manufactured in the United States, this intelligent heating cable ensures your residential and commercial properties are prepared for winter's challenges. Its self-regulating technology automatically adjusts heat output based on ambient temperature, delivering precise warmth only when needed, which helps optimize energy consumption. This 24-foot cable comes pre-assembled with a lighted NEMA 5-15 plug, making installation straightforward for homeowners, contractors, engineers, and facility managers alike.

KEY FEATURES AND BENEFITS:

• Adaptive Heating Technology: Automatically adjusts heat output based on surrounding temperatures, increasing power for ice and snow and decreasing it as areas clear, ensuring optimal energy use and cost efficiency.
• Plug-and-Go Installation: Comes pre-assembled with a lighted mechanical plug (NEMA 5-15), ready to be plugged into a GFCI-protected circuit, simplifying the setup process for immediate use.
• Comprehensive Freeze Protection: Effectively prevents pipes from freezing and rupturing, and mitigates ice dam formation on roofs and in gutters, safeguarding your property's infrastructure.
• Certified Safety: Self-regulates to prevent overheating, even when cable sections overlap, and is certified for ordinary (non-classified) areas, ensuring safe operation.
• Quality American Manufacturing: Designed and made in the United States using top-quality materials and proprietary technology, providing a reliable and long-lasting solution.

SPECIFICATIONS:

• Length: 24 feet
• Voltage: 120V
• Watts per Foot: 6 W/ft (at 50°F/10°C)
• Amperage (Freeze Protection): 1.2 Amps
• Amperage (Roof Snow & Ice Removal): 1.6 Amps
• Wattage (Freeze Protection): 144 Watts
• Wattage (Roof Snow & Ice Removal): 192 Watts
• Maximum Maintain Temperature: 140°F (60°C)
• Minimum Operating Temperature: -40°F (-40°C)
• Plug Type: NEMA 5-15 (lighted)
• Power Cord Length: 6 feet

HOW TO USE:

1. Assess Your Application: Determine whether you need to protect pipes from freezing or de-ice roofs and gutters.
2. Plan Cable Routing: For pipes, wrap the cable spirally along the pipe or run it straight along one side and secure it. For roofs and gutters, route the cable in a zigzag pattern along roof edges and into gutters and downspouts.
3. Secure the Cable: Use appropriate fasteners (e.g., mechanical fasteners for roofs, tape for pipes) to firmly attach the ReadyTrace cable along the intended path.
4. Connect to Power: Ensure the electrical circuit you plan to use is GFCI-protected. If not, use an inline GFCI option (sold separately).
5. Plug In: Insert the lighted NEMA 5-15 mechanical plug into the GFCI-protected outlet. The light on the plug indicates that the cable is receiving power and operating.
6. Monitor Operation: The cable will automatically adjust its heat output based on temperature. No manual adjustments are needed.

BENEFITS OF USING READYTRACE 24 FT. SELF-REGULATING HEAT TRACE CABLES (READYTRACE-024):

• Provides reliable freeze protection for critical plumbing systems, preventing costly pipe bursts and water damage.
• Minimizes the formation of ice dams on roofs, protecting roofing materials, eaves, and interior spaces from water infiltration.
• Ensures consistent water flow through gutters and downspouts, preventing blockages and overflow during freezing conditions.
• Reduces overall energy consumption due to its intelligent self-regulating design, saving on utility costs throughout winter.
• Offers a straightforward installation process, saving time and labor, making it accessible for a variety of users.
• Contributes to the longevity of your building's infrastructure by preventing damage caused by ice expansion and contraction.
• Maintains aesthetic integrity of buildings by preventing unsightly and potentially dangerous icicle formation.

FEATURES:

• Pre-assembled for immediate plug-in use.
• Flexible construction allows for easy wrapping around complex shapes.
• Built with high-quality materials for consistent operation.
• Resistant to harsh environmental conditions.
• Suitable for both small-diameter and medium-diameter pipes.
• Designed to prevent hot spots or localized overheating.
• Provides clear visual indication of power status via a lighted plug.
• Can be used in various commercial and residential settings.
• Supports efficient drainage in freezing temperatures.
• Manufactured with an overjacket for additional chemical protection.
