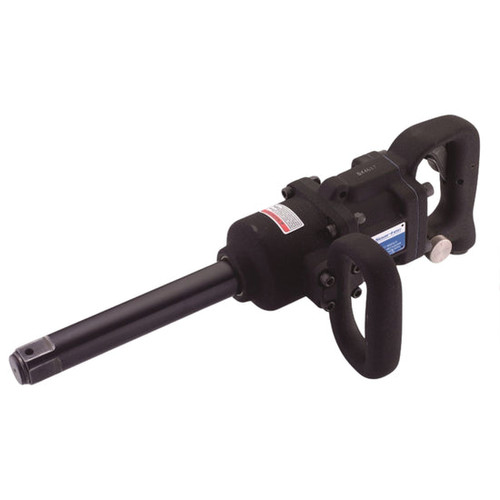

Soartec Air 1" D-Handle 6" Anvil 1800 ft-lb Impact Wrench (WS-2108L)

The Soartec Air 1" D-Handle 6" Anvil 1800 ft-lb Impact Wrench (WS-2108L) is a professional-grade pneumatic tool built for the most challenging fastening and loosening tasks. Designed for heavy-duty applications such as truck tire service, agricultural machinery maintenance, and industrial assembly, this impact wrench combines substantial torque with user-focused features. Its robust construction, including an aluminum alloy case and twin hammer mechanism, ensures consistent performance and a long operational lifespan. The extended 6-inch anvil provides improved reach for deep-set fasteners, making it an essential tool for environments where large bolts need to be handled efficiently and safely.

KEY FEATURES AND BENEFITS:

• High Torque Output: Delivers a maximum of 1800 ft-lbs (Nut Busting Torque) at 5 seconds, making it highly effective for removing even the most stubborn and corroded bolts.
• Extended 6-Inch Anvil: Offers improved reach, allowing access to lug nuts and other fasteners in deep wheel wells, which is particularly beneficial for truck and bus service.
• Twin Hammer Mechanism: Provides consistent and powerful impacts, ensuring efficient loosening and tightening of fasteners with reduced vibration.
• Lightweight Construction: Weighing only 11.8 lbs, this tool minimizes user fatigue during extended use while still providing exceptional power.
• Enhanced Control System: Features a patented two-stage trigger for precise speed modulation and better activation at lower air pressures, along with four distinct speed settings for varied applications.
• Ergonomic Design: Equipped with both a D-handle and a side handle, offering improved comfort and stability, which is crucial for controlling a high-torque tool.
• Advanced Motor Design: Includes spring-enhanced motor blades, optimizing efficiency and durability for reliable performance over time.
• Durable Build: Constructed with an aluminum alloy case, providing superior resistance to wear and tear in demanding work environments and ensuring a long product life.

SPECIFICATIONS:

• SKU: WS-2108L
• Type: Air Impact Wrench
• Square Drive: 1 inch
• Standard Bolt Capacity: 1-1/8 inches
• Max. Torque @ 5 sec: 1800 ft-lb
• Max. Forward Torque: 1700 ft-lb
• Min. Working Torque: 100 ft-lb
• Max. Working Torque: 1400 ft-lb
• Free Speed: 7500 RPM
• Weight: 11.8 lb
• Length: 17.36 inches (441 mm)
• Anvil: 6 inches
• Clutch Type: Twin Hammer
• Min. Hose Size: 1/2 inch
• Air Inlet: 3/8 inch NPT
• Air Pressure: 90 psi
• Air Consumption: 21.1 CFM (600 L/min)
• Noise Level: 99.8 dB
• Warranty: 3 years

HOW TO USE:

1. Prepare Air Supply: Connect a 1/2 inch (minimum) air hose to a compressed air source set to 90 PSI. Ensure the air supply is clean and dry.
2. Connect to Tool: Attach the 3/8 inch NPT air inlet of the impact wrench to the air hose.
3. Select Socket: Choose the correct 1-inch square drive impact-grade socket for the fastener you intend to work on. Securely attach the socket to the 6-inch anvil.
4. Choose Direction: Utilize the separate switch to select either forward (for tightening) or reverse (for loosening) rotation.
5. Adjust Speed/Torque: Set the desired speed/power setting using the four-position settings available on the tool. For initial loosening of very tight bolts, full power is often recommended.
6. Position Tool: Firmly hold the D-handle and side handle, positioning the socket squarely onto the fastener.
7. Activate Tool: Depress the two-stage trigger to begin operation. Start with a partial press for lower speed control, increasing pressure for full power.
8. Monitor Progress: Continue operating until the fastener is loosened or tightened to the desired extent. For tightening, always follow manufacturer torque specifications using a torque wrench.
9. Release Trigger: Release the trigger to stop the tool's operation.
10. Disconnect: When finished, disconnect the air supply from the tool.

BENEFITS OF USING SOARTEC AIR 1" D-HANDLE 6" ANVIL 1800 FT-LB IMPACT WRENCH (WS-2108L):

• Time Savings: Its high torque output significantly reduces the time and effort required to remove stubborn or large fasteners, increasing overall work efficiency.
• Enhanced Safety: The internal trigger design adds a layer of safety during operation, preventing accidental activation.
• Broad Application Suitability: Ideal for a wide range of heavy-duty tasks, from disassembling truck tires to general industrial machinery maintenance, making it a versatile addition to any professional workshop.
• Reduced Manual Strain: The pneumatic power eliminates the need for manual force often associated with breaking loose tight bolts, reducing physical strain on the user.
• Long-Term Reliability: The combination of a twin hammer mechanism, durable aluminum alloy casing, and a 3-year warranty provides assurance of the tool's longevity and performance under rigorous conditions.
• Precise Control: The two-stage trigger and multiple speed settings allow the operator to have nuanced control over the tool's power, preventing over-tightening or damage to fasteners.

FEATURES:

• D-handle and dedicated side handle for balanced handling.
• Two-stage trigger mechanism for feathered control and activation at lower pressures.
• Four distinct power settings on both forward and reverse.
• Integrated switch for seamless direction changes between forward and reverse.
• Motor design incorporates spring-enhanced blades for optimized performance.
• Constructed with an aluminum alloy housing for operational longevity.
• Pinless impact mechanism to deliver consistent force.
• Designed with an internal trigger for user safety.
• Extended 6-inch anvil for enhanced reach into recessed areas.
• Twin hammer clutch type for robust power delivery.
• Rated for a standard bolt capacity of 1-1/8 inches.
• Air exhaust positioned to direct expelled air away from the user (common design, assumed for comfort).
