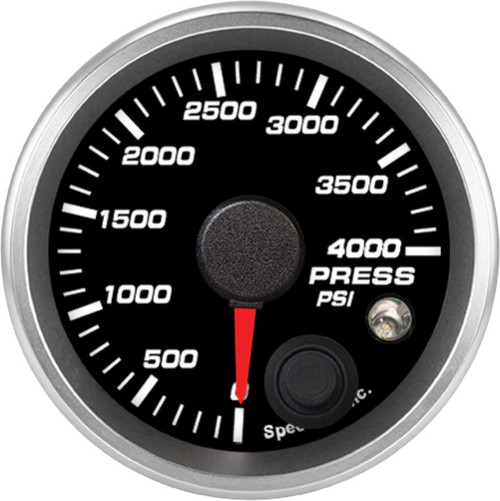

Speedhut 2-1/16" 0-4000 PSI CNG Pressure Gauge w/ Warning (R2-CP1-REV)

The Speedhut 2-1/16" 0-4000 PSI CNG Pressure Gauge w/ Warning (R2-CP1-REV) is a precise and reliable instrument designed to accurately monitor the pressure levels within your Compressed Natural Gas (CNG) system. Built with quality components and engineered for performance, this gauge provides real-time pressure readings and incorporates a crucial warning light feature for enhanced safety. Included with the gauge are all the necessary components for installation, ensuring a straightforward setup process.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Provides precise readings of your CNG system pressure from 0 to 4000 PSI, allowing for informed management of your fuel levels.
• Integrated Warning System: Features a built-in warning light that can be configured to alert you when pressure levels reach a critical point, enhancing safety and preventing potential issues.
• High-Performance Sensor: Utilizes a 3-Wire Military Grade Transducer, ensuring accurate and dependable pressure readings under various operating conditions.
• Easy Installation: The 2-1/16" (54mm) size and included spin-lock ring facilitate easy mounting in standard gauge pods. The package also comes with a wiring harness and adapter for simplified connection.
• Robust Construction: Features a durable, slim case with a solid aluminum bezel, designed to withstand the rigors of automotive environments. It is also weather-resistant for lasting performance.
• Quality Assurance: Proudly made in America and backed by a lifetime warranty on gauge electronics and a 5-year warranty on hardware, providing peace of mind.
• Complete Kit: Ships with all essential components, including the pressure sensor, wiring harnesses, and adapter, eliminating the need for separate purchases.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: CNG Pressure Gauge
• Range: 0-4000 PSI
• Size: 2-1/16 inch (52mm)
• Hole Size: 2.10 inches (54mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Pressure Sensor Range: 0-5000 PSI
• Connection: 1/4 inch NPT Male to 3/8-24 ORB Female (via included adapter)
• Power & Lighting Harness Length: 3 ft
• Compatibility: Suitable for most CNG systems utilizing a 3-wire pressure sensor.

HOW TO USE:

1. Mount the Gauge: Choose a suitable location on your vehicle's dashboard or instrument panel and drill a 2.10" (54mm) hole. Insert the gauge into the hole and secure it using the spin-lock ring.
2. Install the Pressure Sensor: Locate a suitable port on your CNG system to install the included high-pressure sensor (5000 PSI). Ensure the connection is secure and leak-free. You may need to use the provided adapter (1/4 inch NPT Male to 3/8-24 ORB Female) depending on your system's fittings.
3. Connect the Wiring Harness: Connect the 3-wire cable from the pressure sensor to the corresponding wires on the Pressure Gauge Wiring Harness.
4. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the gauge. Connect the power and ground wires to your vehicle's electrical system. If your gauge has LED lighting, connect the appropriate wire for illumination.
5. Configure the Warning Light (if applicable): Some Speedhut gauges allow you to set the pressure threshold for the warning light. Refer to the specific instructions included with your gauge for this configuration.
6. Verify Operation: Once all connections are made, start your vehicle and observe the gauge reading. Ensure the pressure is displayed accurately and that the warning light functions as expected when the pressure reaches any set threshold.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-4000 PSI CNG PRESSURE GAUGE W/ WARNING (R2-CP1-REV):

• Provides accurate and real-time monitoring of CNG fuel levels, helping manage fuel usage effectively.
• Integrated warning light alerts users to low or critical pressure, enhancing operational safety.
• High-performance military-grade transducer ensures reliable and consistent readings.
• Includes all necessary components for installation, minimizing setup time and complexity.
• Durable and weather-resistant build supports long-term use in demanding environments.
• Comprehensive warranty coverage ensures peace of mind and product reliability.

FEATURES:

• Internal Microprocessor: Ensures highly accurate and stable pressure readings.
• High Torque Stepper Motor: Provides precise and smooth pointer movement.
• Slim Case Design: Allows for flexible mounting options in various dashboards.
• Spin-Lock Ring: Simplifies the installation process, providing a secure fit.
• Solid Aluminum Bezel: Offers a stylish and protective finish.
• Weather-Resistant Construction: Protects the gauge from environmental elements.
• Made in the USA: Reflects high manufacturing standards and quality control.
• Lifetime Warranty (Electronics): Demonstrates confidence in the gauge's internal components.
• 5-Year Warranty (Hardware): Covers the physical components of the gauge.
• Complete Wiring Included: Provides all necessary electrical connections for the gauge and sensor.
