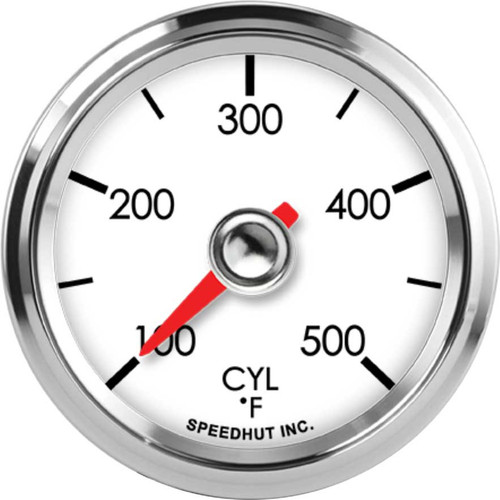

Speedhut 2-1/16" 100-500F Cylinder Head Temp Gauge (L2-CT1-LEG)

The Speedhut 2-1/16" 100-500F Cylinder Head Temp Gauge (L2-CT1-LEG) allows you to closely monitor the temperature of your engine's cylinder head, providing crucial information for maintaining optimal performance and preventing potential damage. Its classic design integrates seamlessly into a variety of vehicle interiors. The gauge offers a measurement range of 100 to 500 degrees Fahrenheit, ensuring you have a comprehensive view of your engine's thermal state. Installation is straightforward with the included mounting ring and the gauge fits into a standard 2-1/16" (52mm) dashboard opening. The reliable K Type Thermocouple temperature probe ensures accurate readings, and the included 9-foot braided steel line offers flexibility in probe placement. The LED illumination ensures excellent visibility during both day and night driving.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Measures cylinder head temperature from 100°F to 500°F.
• Reliable Sensor: Utilizes a K Type Thermocouple probe for dependable readings.
• Classic Design: Blends seamlessly with various vehicle interiors.
• Easy Installation: Fits standard 2-1/16" dashboard openings with included mounting ring.
• Durable Probe: Comes with a 9-foot braided steel line for flexible and safe placement.
• LED Illumination: Ensures clear visibility in all lighting conditions.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Cylinder Head Temperature Gauge
• Range: 100-500 degrees Fahrenheit
• Size: 2-1/16 inch (52mm) diameter
• Hole Size: 2.062 inches (52mm)
• Temp Sender Type: K Type Thermocouple Temp Probe
• Included:
  • 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
  • Cylinder Head (14mm) Type K Probe 9' long, Braided steel line
  • Gauge Mounting Ring

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable location on your dashboard with a 2-1/16" (52mm) diameter opening.
2. Install the Gauge: Insert the gauge into the opening from the front. Secure it using the included mounting ring from the back of the dashboard.
3. Mount the Temperature Probe: Locate a suitable 14mm threaded port on your engine's cylinder head. Thread the included K Type Thermocouple probe into this port. Ensure the probe is securely fastened.
4. Connect the Wiring Harness: Connect the 3 ft Power & Lighting Harness to the back of the gauge. Typically, this will involve connections for power, ground, and illumination. Refer to your vehicle's wiring diagram for appropriate connections.
5. Route the Probe Wire: Carefully route the 9-foot wire from the Cylinder Head Temperature Probe to the back of the gauge, ensuring it is not near any moving parts or extreme heat sources. Connect the probe wire to the designated terminals on the back of the gauge.
6. Test the Gauge: Once all connections are made, start your vehicle and observe the gauge reading. It should begin to display the cylinder head temperature. Verify the illumination functions correctly when your vehicle's lights are turned on.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 100-500F CYLINDER HEAD TEMP GAUGE (L2-CT1-LEG):

• Allows early detection of overheating to prevent engine damage like warped heads or pistons.
• Helps monitor engine performance trends for improved driving and maintenance decisions.
• Ensures engine longevity by providing accurate temperature insights.
• Delivers dependable and clear data with a trusted thermocouple probe.
• Simple installation and compatibility with most standard dashboard cutouts.

FEATURES:

• Provides precise readings of cylinder head temperature ranging from 100°F to 500°F.
• Employs a reliable K Type Thermocouple probe for accurate temperature sensing.
• Features a traditional white gauge face with clear black numerals and an orange pointer for easy readability.
• Designed with LED backlighting for excellent visibility during nighttime driving.
• Installs easily into a standard 2-1/16" (52mm) diameter hole in your dashboard.
• Includes a 9-foot long temperature probe with a braided steel protective line for durability and flexible installation.
• Comes with a 3-foot power and lighting harness for straightforward electrical connections.
• The 14mm threaded probe is compatible with many common cylinder head ports.
• A gauge mounting ring is included, simplifying the installation process.
