Description

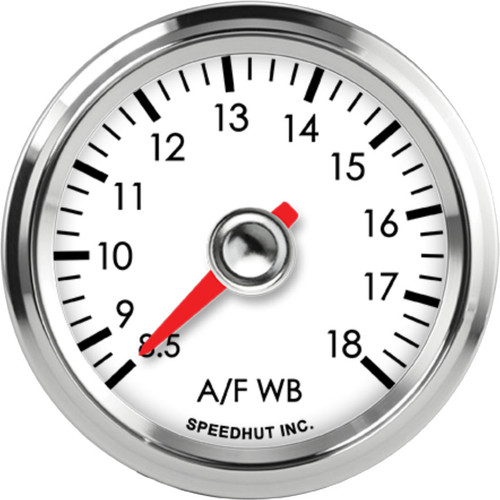

The Speedhut 2-1/16" Air/Fuel Wideband w/Analog Out (L2-WB1-LEG) provides accurate and real-time monitoring of your engine's air-fuel ratio (AFR). This standalone system features a built-in controller, simplifying installation and eliminating the need for external control units. The gauge displays readings from 8.5 to 18 AFR, allowing for precise tuning and diagnostics. Its classic styling with LED illumination ensures clear visibility. The included LSU 4.9 wideband O2 sensor delivers reliable data, and the analog output allows for seamless integration with data loggers or other engine management systems.
KEY FEATURES AND BENEFITS:
- Accurate AFR Monitoring: Provides precise readings of your engine's air-fuel ratio, crucial for optimal performance and engine health.
- Standalone Operation: Features an integrated controller, making installation straightforward without the need for additional components.
- Wide Measurement Range: Measures AFR from 8.5 to 18, suitable for a variety of tuning applications.
- Included LSU 4.9 Sensor: Comes with a high-quality LSU 4.9 wideband O2 sensor for reliable and accurate data acquisition.
- Analog Output: Offers an analog output signal for connection to external devices like data loggers or engine control units.
- Classic Styling: The 2-1/16" gauge with LED lighting provides a traditional look with excellent nighttime visibility.
- Easy Installation: Designed for mounting in a standard 2 1/16" (52mm) gauge opening.
SPECIFICATIONS:
- Gauge Type: Air/Fuel Wideband Gauge
- Range: 8.5 - 18 AFR
- Size: 2 1/16 inch (52mm)
- Hole Size: 2.10 inches (54mm)
- Controller Compatibility: Standalone (Built-in Controller)
- Note: 14.7 AFR = 1.0 Lambda
- Ships With:
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
- LSU 4.9 Wideband O2 Sensor (for the standalone AFWB gauge only)
HOW TO USE:
- Mount the Gauge: Locate a suitable 2 1/16" (52mm) opening in your vehicle's dashboard or instrument panel. Secure the gauge using the provided mounting hardware.
- Install the O2 Sensor Bung: Weld the included O2 sensor bung into your exhaust system at a location after the engine but before the catalytic converter (if applicable).
- Install the O2 Sensor: Carefully thread the included LSU 4.9 wideband O2 sensor into the newly installed bung. Ensure it is securely tightened.
- Connect the Wiring Harness: Connect the 3 ft Power & Lighting Harness to the gauge.
- Connect Power and Ground: Connect the power wire from the harness to a switched 12V power source in your vehicle. Connect the ground wire to a reliable ground point on the vehicle's chassis.
- Connect Lighting (Optional): Connect the lighting wire from the harness to your vehicle's lighting circuit if you desire the gauge to illuminate with your other instruments.
- Connect Analog Output (Optional): If you intend to use the analog output, connect the appropriate wire(s) to your data logger or engine management system according to their respective instructions.
- Start Your Vehicle: Once all connections are secure, start your vehicle. The gauge should power on and begin displaying the air-fuel ratio.
BENEFITS OF USING THE SPEEDHUT 2-1/16" AIR/FUEL WIDEBAND W/ANALOG OUT (L2-WB1-LEG):
- Offers precise and immediate feedback on the engine's air-fuel mixture for more accurate tuning.
- Enables optimal performance, increased fuel efficiency, and reduced emissions.
- Real-time AFR monitoring helps identify potential engine issues before they become critical, preventing costly repairs.
- Standalone operation simplifies the installation process without the need for additional components.
- Includes the high-quality LSU 4.9 sensor for reliable and accurate readings.
- Analog output functionality allows for advanced data logging and integration with other engine management systems.
- Ideal for both everyday driving and performance applications.
FEATURES:
- Provides immediate and accurate air-fuel ratio readings for real-time engine monitoring.
- Integrates the controller directly within the gauge housing for a cleaner and simpler setup.
- Covers a broad AFR spectrum from rich (8.5) to lean (18) mixtures.
- Comes equipped with the advanced LSU 4.9 wideband oxygen sensor for enhanced accuracy.
- Offers a dedicated analog output for seamless connection to external data recording or engine control devices.
- Features a traditional gauge face with bright LED illumination for excellent visibility in all lighting conditions.
- Designed to fit standard 2 1/16" (52mm) instrument panel openings.
-
