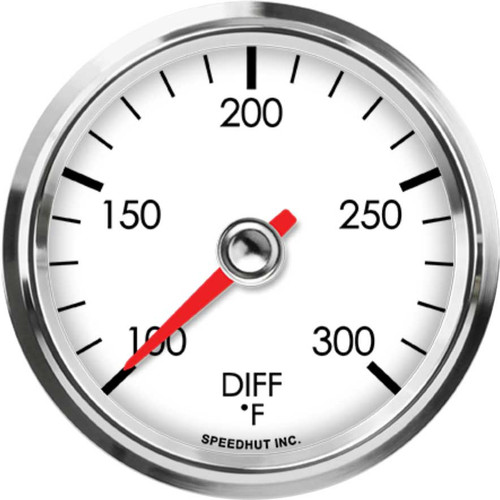

Speedhut 2-5/8" 100-300F Diff Temp Gauge (L25-DT1-LEG)

The Speedhut 2-5/8" 100-300F Diff Temp Gauge (L25-DT1-LEG) provides accurate and reliable temperature monitoring for various automotive applications. This gauge features a clear, easy-to-read display showing temperatures between 100 and 300 degrees Fahrenheit. Designed for performance, it includes a 2-wire temperature sender to ensure precise readings. Its standard 2-5/8 inch size makes it compatible with many gauge mounting solutions.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Reliably tracks temperatures within the 100-300°F range, providing essential data for vehicle maintenance and performance.
• Performance Sender Included: Comes with a 2-wire performance temperature sender for enhanced accuracy and responsiveness.
• Standard Size: The 2-5/8 inch (66mm) gauge fits common gauge pods and mounting locations.
• Complete Wiring Included: Ships with all necessary wiring harnesses for power, lighting (for LED-lit gauges), and connecting the temperature sensor.
• Easy Installation: Designed for straightforward installation with included wiring and sensor.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 °F
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard (Fahrenheit)
• Warning Light: No
• Ships With:
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
• Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8 inch gauge in your desired location using a compatible gauge pod or mounting solution. Ensure the 2.67-inch (68mm) hole size is appropriate.
2. Install the Temperature Sensor: Mount the included Speedhut temperature sensor in the location where you need to monitor the temperature. This typically involves threading the sensor into a designated port or using an appropriate adapter (not included).
3. Connect the Sensor Wiring: Attach the 2-wire cable from the temperature gauge wiring harness to the terminals on the Speedhut temperature sensor.
4. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source in your vehicle. This harness also provides power for the gauge's LED lighting (if applicable).
5. Ground the Gauge: Ensure the gauge has a proper ground connection as specified in the wiring harness instructions.
6. Verify Functionality: Once all connections are made, start your vehicle and observe the gauge to confirm it is displaying temperature readings.

BENEFITS OF USING THE SPEEDHUT 2-5/8" 100-300F DIFF TEMP GAUGE (L25-DT1-LEG):

• Allows you to actively monitor critical temperatures in your vehicle.
• Helps identify potential issues early, reducing the risk of costly repairs or damage.
• Provides clear and accurate real-time temperature readings for better vehicle management.
• Includes a performance sender for reliable data output.
• Supports optimal vehicle performance and prolongs component lifespan.

FEATURES:

• Clear analog display shows temperatures between 100-300°F.
• Includes a dedicated 2-wire performance temperature sensor for precision monitoring.
• Standard 2-5/8 inch gauge size compatible with a variety of mounting setups.
• Supplied with all necessary wiring for temperature sensor, power, and LED illumination.
• Constructed with durable materials suitable for demanding automotive use.
