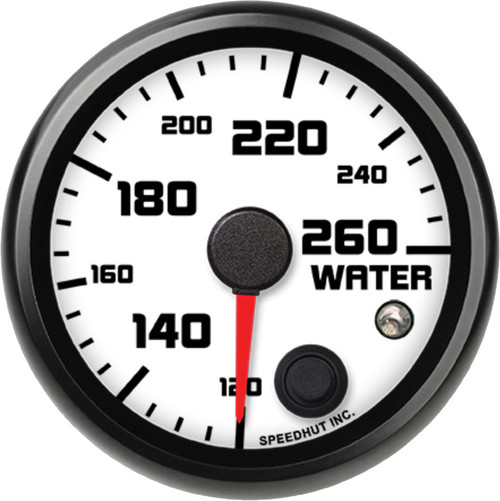

Speedhut 2-5/8" Street XL 120-260F Water Temp w/Warning (R25-WT1-SXL)

The Speedhut 2-5/8" Street XL 120-260F Water Temp w/Warning (R25-WT1-SXL) is a precise instrument designed to provide accurate monitoring of your vehicle's engine coolant temperature. This gauge is essential for ensuring optimal engine performance and preventing potential overheating issues. With its clear display and integrated warning light, it offers a reliable way to stay informed about a critical engine parameter.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Provides precise readings of your engine's water temperature within a range of 120-260°F, allowing you to track vital engine conditions.
• Overheat Warning: Features a built-in warning light that can be set to illuminate when the coolant temperature exceeds a predefined level, giving you an immediate visual alert to potential problems.
• Performance Sensor Included: Comes equipped with a 2-wire performance temperature sender, ensuring accurate and responsive temperature readings.
• Easy Installation: Designed with a 2-5/8 inch (68mm) mounting diameter, making it compatible with many standard gauge pods and installations. The included wiring harnesses simplify the connection process.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temperature Range: 120-260 °F
• Gauge Size: 2 5/8 inch
• Mounting Hole Size: 2.67 inches (68mm)
• Scale: Standard (Fahrenheit)
• Warning Light: Yes
• Included:
• Speedhut Temperature Sensor
• 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
• Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2-5/8 inch (68mm) opening in your vehicle's dashboard or a gauge pod. Secure the Speedhut Water Temp gauge in this opening.
2. Install the Temperature Sensor: Identify a suitable location on your engine's coolant system to install the included 2-wire temperature sensor. Ensure it is properly threaded and sealed.
3. Connect the Wiring Harnesses:
   • Connect the 2-wire cable from the temperature sensor to the corresponding terminals on the back of the gauge.
   • Connect the 3 ft Power & Lighting Harness to the power and ground sources in your vehicle's electrical system, as well as to the lighting circuit if desired. Connect the other end of this harness to the gauge.
4. Set the Warning Light Threshold (if applicable): Some Speedhut gauges allow you to set the temperature at which the warning light will activate. Refer to the specific instructions included with your gauge for this process.
5. Verify Functionality: Once all connections are made, start your vehicle and allow it to reach operating temperature. Observe the gauge to ensure it is displaying the correct water temperature. Check that the warning light functions as expected if the temperature exceeds the set threshold.

BENEFITS OF USING THE SPEEDHUT 2-5/8" STREET XL 120-260F WATER TEMP W/WARNING (R25-WT1-SXL):

• Prevent Overheating: By closely monitoring the temperature, you can identify and address potential overheating issues before they cause significant engine damage, leading to costly repairs and downtime.
• Ensure Optimal Performance: Maintaining the correct engine operating temperature is vital for efficient combustion, optimal fuel economy, and prolonged engine life. This gauge helps you confirm your engine is running within its ideal temperature range.
• Early Problem Detection: Gradual increases in temperature can indicate underlying issues with the cooling system, such as a failing thermostat, a leak, or a malfunctioning water pump. This gauge can alert you to these problems early on.
• Increased Driving Confidence: Knowing that you have a reliable and accurate indication of your engine's temperature provides peace of mind while driving, especially under demanding conditions.

FEATURES:

• Clear and easy-to-read display showcasing temperatures from 120°F to 260°F.
• Integrated warning light for immediate alerts when critical temperature levels are reached.
• Utilizes a performance-oriented 2-wire temperature sensor for accurate and quick readings.
• Standard 2-5/8 inch (68mm) size for versatile mounting options.
• Designed for straightforward electrical connection using the included power and sensor harnesses.
• Robust construction intended for the demanding environment of automotive use.
