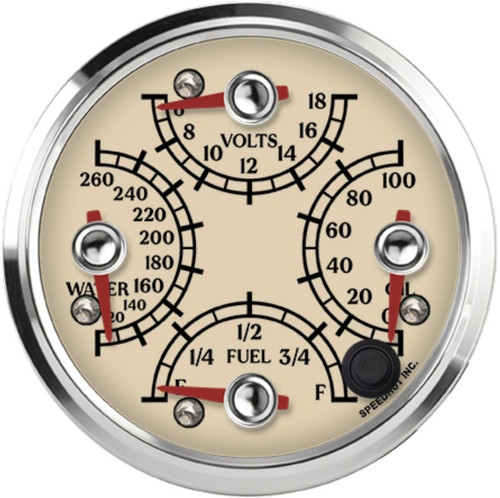

Speedhut 3-3/8" Antique Water Temp/Volt/OilPSI/Fuel Level (R3-QG2-ATQ) is a comprehensive instrument designed to provide a complete overview of your vehicle's essential operating parameters. This single, elegantly styled 3-3/8" gauge integrates four critical readings, allowing you to monitor your engine's water temperature, oil pressure, electrical system voltage, and fuel level with ease. Engineered for accuracy and convenience, this gauge is an ideal solution for those seeking a consolidated and reliable monitoring system.
KEY FEATURES AND BENEFITS:
- Four-in-One Functionality: Combines water temperature, oil pressure, voltage, and fuel level readings into a single, space-saving unit.
- Clear and Classic Display: Features an antique style for a timeless aesthetic that complements various dashboard designs.
- Essential Vehicle Monitoring: Provides real-time data on critical engine and electrical system performance.
- Included Sensors: Comes with a Speedhut temperature sensor and a 100 psi pressure sensor, simplifying the installation process for these readings.
- Warning Light Integration: Equipped with a warning light to alert you to potential issues.
- Standard Sizing: The 3 3/8" size and 3.28" mounting hole are standard dimensions for easy integration into many dashboards.
- Compatibility with Common Fuel Senders: Designed to work with most fuel level sensors that have a resistance of 300 ohms or less.
- Complete Wiring Harnesses: Ships with all necessary wiring harnesses for power, lighting, and sensor connections.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Voltage Range: 6-18 volts
- Water Temperature Range: 120-260 °F
- Fuel Level Range: Empty (E) to Full (F) (compatible with senders <= 300 ohms)
- Oil Pressure Range: 0-100 psi
- Size: 3 3/8 inch (diameter)
- Hole Size: 3.28 inch (83mm)
- Units: Standard
- Warning Light: Yes
- Included:
- Speedhut Temperature Sensor
- Pressure Sensor - 100 psi
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Wiring Harness (2-Wire Cable)
- Temperature Gauge Wiring Harness (2-Wire Cable)
HOW TO USE:
- Mount the Gauge: Locate a suitable 3.28" diameter hole in your dashboard. Secure the Speedhut Quad Gauge in the opening using the appropriate mounting hardware (not included unless specified by the seller).
- Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the gauge. Connect the power wire to a switched 12V source, the ground wire to a suitable ground point, and the lighting wire to your vehicle's lighting circuit if desired for illumination.
- Install Temperature Sensor: Mount the included Speedhut temperature sensor in the designated location on your engine (usually the coolant passage). Connect the Temperature Gauge Wiring Harness to the sensor and the corresponding terminals on the gauge.
- Install Pressure Sensor: Mount the included 100 psi pressure sensor to the engine's oil pressure port. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) to the sensor and the appropriate terminals on the gauge.
- Connect Fuel Level Sender: Locate the wiring from your vehicle's fuel level sender. Connect it to the designated terminals on the gauge using the Wiring Harness (2-Wire Cable). Ensure your fuel sender has a resistance of 300 ohms or less.
- Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to the gauge's wiring diagram (refer to the product manual if provided).
- Test the Gauge: Start your vehicle and observe the gauge readings to ensure they are functioning correctly. Check that the warning light illuminates under appropriate conditions (refer to the product manual).
BENEFITS OF USING THE SPEEDHUT 3-3/8" ANTIQUE WATER TEMP/VOLT/OILPSI/FUEL LEVEL (R3-QG2-ATQ):
- Provides a centralized display of four crucial vehicle parameters, reducing dashboard clutter.
- Allows for convenient and immediate monitoring of engine health and electrical system status.
- The included temperature and pressure sensors simplify the installation process for these vital readings.
- The warning light feature can provide early alerts to potential problems, helping to prevent more significant issues.
- The classic antique styling adds a touch of vintage appeal to your vehicle's interior.
- Compatibility with a wide range of fuel level senders (300 ohms or less) offers flexibility.
- The included wiring harnesses facilitate a smoother and more organized installation.
FEATURES:
- Integrates readings for water temperature, oil pressure, voltage, and fuel level in a single 3-3/8" housing.
- Presents data through a traditional antique-style display with clear markings.
- Offers a visual warning indicator for critical conditions.
- Designed for mounting in a standard 3.28" diameter opening.
- Operates within a voltage range of 6 to 18 volts.
- Monitors water temperature from 120 to 260 degrees Fahrenheit.
- Displays oil pressure from 0 to 100 pounds per square inch.
- Indicates fuel level from Empty to Full, compatible with resistive senders up to 300 ohms.
- Ships with dedicated sensors for temperature and pressure measurements.
- Includes necessary wiring harnesses for straightforward electrical connections.
-
