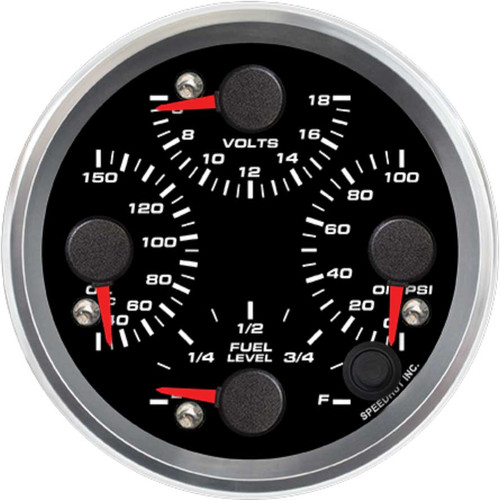

Name: Speedhut 3-3/8" Quad Met Oil Temp/Volt/Oil PSI/Fuel Level (R3-QG3-REV)
Brand: Speedhut
SKU: JB-DS-SPHT-R3-QG3-REV
Price: 315.29 USD
Availability: InStock

Description
The Speedhut 3-3/8" Quad Met Oil Temp/Volt/Oil PSI/Fuel Level (R3-QG3-REV) is a compact and efficient instrument designed to provide a comprehensive overview of your vehicle's critical operating parameters. This single 3 3/8-inch (83mm) gauge consolidates four essential readings: metric oil temperature, voltage, oil pressure (in PSI), and fuel level. Engineered for accuracy and ease of installation, this gauge helps drivers maintain a close watch on their engine's health and fuel status, all within a clean and organized dashboard layout.

KEY FEATURES AND BENEFITS:
- Space-saving solution: Integrates oil temperature, voltage, oil pressure, and fuel level into one gauge.
- Real-time monitoring: Allows for simultaneous observation of multiple engine parameters.
- Easy installation: Includes oil pressure and temperature sensors along with wiring harnesses.
- Integrated warning light: Provides immediate alerts for abnormal readings.
- Fuel sender compatibility: Works with most fuel level sensors up to 300 ohms.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Range: 6-18 volts (Voltage)
- Range: 40-150 °C (Oil Temperature)
- Range: Empty to Full (Fuel Level)
- Range: 0-100 psi (Oil Pressure)
- Size: 3 3/8 inch
- Hole Size: 3.28 inch (83mm)
- Standard or Metric: Metric (Oil Temperature)
- Warning Light: Yes
- Fuel level signal type: 300 ohms or less. (Most Fuel Level Sensors)
- Included:
HOW TO USE:
1. Mount the Gauge: Locate a suitable 3.28-inch (83mm) diameter opening on your dashboard. Insert the Speedhut Quad Gauge into this opening and secure it using the included spin-lock ring.
2. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a 12V power source, the ground wire to a suitable ground point, and the lighting wire to your vehicle's lighting circuit if desired.
3. Install the Pressure Sensor: Install the included 100 psi pressure sensor into an appropriate port on your engine.
4. Connect the Pressure Sensor Wiring Harness: Connect the 3-wire harness between the sensor and the gauge.
5. Install the Temperature Sensor: Install the Speedhut temperature sensor into a suitable port, such as the oil pan.
6. Connect the Temperature Sensor Wiring Harness: Use the 2-wire harness to connect the sensor to the gauge.
7. Connect the Fuel Level Wiring: Connect the 2-wire cable to your vehicle's fuel level sending unit (300 ohms or less) and the gauge.
8. Verify Connections: Ensure all connections are secure and properly made.
9. Test the Gauge: Turn on the ignition and observe the readings for all parameters.
BENEFITS OF USING THE SPEEDHUT 3-3/8" QUAD MET OIL TEMP/VOLT/OIL PSI/FUEL LEVEL (R3-QG3-REV):
- Consolidated monitoring: Combines four vital readings in one easy-to-read gauge.
- Dashboard efficiency: Saves space and reduces clutter by replacing multiple gauges.
- Enhanced driver awareness: Provides real-time data on critical engine metrics.
- Proactive maintenance: Helps detect potential issues early, reducing costly repairs.
- Simplified installation: All necessary sensors and harnesses included.
- Wide compatibility: Works with most fuel level sensors under 300 ohms.
- Visual alert: Integrated warning light for immediate notification of out-of-range readings.
FEATURES:
- Four-in-One Display: Shows metric oil temperature, voltage, oil pressure, and fuel level in a single, compact unit.
- Direct Sensor Connection: Comes with dedicated sensors for oil pressure and temperature for accurate readings.
- Simplified Wiring: Includes all necessary wiring harnesses for straightforward installation.
- Space-Saving Design: Consolidates multiple gauges, freeing up valuable dashboard real estate.
- Clear Metric Readout: Displays oil temperature in Celsius for precise monitoring.
- Broad Fuel Sender Compatibility: Designed to work with most fuel level sensors that have an ohm range of 300 ohms or less.
- Easy Mounting: Utilizes a spin-lock ring for secure and hassle-free installation in a standard 3.28-inch (83mm) dash opening.
This item can only be shipped within the 48 contiguous United States via ground shipping. Unfortunately, we cannot ship it via air or to Alaska, Hawaii, or international locations.
