Description

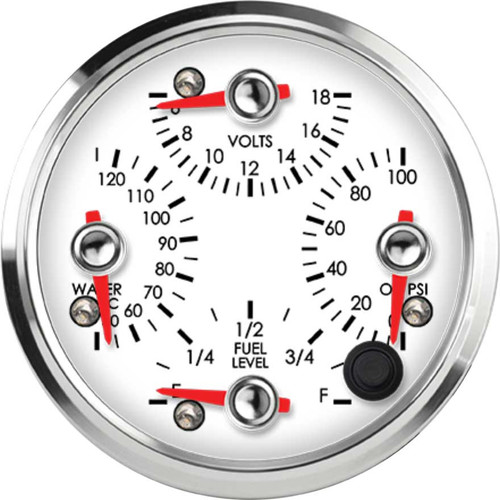

The Speedhut 3-3/8" Quad Water Temp/Volts/Oil PSI/Fuel Level (R3-QG1-LEG) is an efficient and precise instrument designed to provide a comprehensive overview of your vehicle's most critical operating parameters. This single, integrated unit displays four essential readings: Water Temperature (in Celsius), Battery Voltage, Oil Pressure (in PSI), and Fuel Level. This consolidation not only saves valuable dashboard space but also allows for quick and easy monitoring of your engine's health and fuel status. The gauge is engineered for accuracy and reliability, ensuring you have the information you need when you need it most.
KEY FEATURES AND BENEFITS:
- Four-in-One Monitoring: Displays Water Temperature (50-125 °C), Voltage (6-18V), Oil Pressure (0-100 psi), and Fuel Level (Empty to Full) in a single 3-3/8" unit.
- Metric Temperature Reading: Provides water temperature readings in Celsius, catering to users who prefer or require this unit of measurement.
- Comprehensive Electrical Monitoring: Tracks your vehicle's voltage, ensuring your electrical system is functioning correctly.
- Essential Lubrication Awareness: Monitors oil pressure, a critical factor in engine longevity and performance.
- Fuel Level Convenience: Keeps you informed about your remaining fuel, helping to prevent unexpected depletion.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Range (Voltage): 6-18 volts
- Range (Water Temperature): 50-125 °C
- Range (Fuel Level): E-F
- Range (Oil Pressure): 0-100 psi
- Size: 3 3/8 inch
- Hole Size: 3.28 inch (83mm)
- Standard or Metric (Temperature): Metric
- Warning Light: Yes
- Fuel Level Signal Type: Compatible with fuel level sensors outputting 300 ohms or less (sensor not included)
- Ships With:
- Wiring Harness (2-Wire Cable)
- Pressure Sensor - 100 psi
- Speedhut Temperature Sensor
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Temperature Gauge Wiring Harness (2-Wire Cable)
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
HOW TO USE:
- Preparation: Disconnect the negative terminal of your vehicle's battery for safety.
- Mounting: Locate a suitable position on your dashboard and drill a 3.28 inch (83mm) diameter hole. Insert the gauge into the hole and secure it using the provided mounting hardware.
- Wiring - Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable power source (typically 12V switched ignition), ground, and lighting circuit in your vehicle, following the harness's wiring diagram.
- Wiring - Sensors:
- Connect the provided Speedhut Temperature Sensor to the appropriate port on the back of the gauge using the Temperature Gauge Wiring Harness (2-Wire Cable). Install the temperature sensor in the designated location on your engine (e.g., coolant passage).
- Connect the provided 100 psi Pressure Sensor to the appropriate port on the back of the gauge using the Pressure Gauge Wiring Harness (3-Wire Cable). Install the pressure sensor in the designated location on your engine's oil system.
- Connect your vehicle's existing fuel level sensor to the designated terminals on the back of the gauge using the Wiring Harness (2-Wire Cable), ensuring compatibility with a 300 ohms or less signal.
- Final Connections: Double-check all wiring connections for accuracy and secureness.
- Battery Reconnection: Reconnect the negative terminal of your vehicle's battery.
- Calibration (Fuel Level): If necessary, calibrate the fuel level gauge to match your vehicle's fuel level sender unit according to the gauge's calibration instructions (refer to the Speedhut documentation for specific steps).
- Testing: Turn on your vehicle's ignition to verify that all gauge readings are functioning correctly and that the warning light operates as expected.
BENEFITS OF USING THE SPEEDHUT 3-3/8" QUAD WATER TEMP/VOLTS/OIL PSI/FUEL LEVEL (R3-QG1-LEG):
- Space Efficiency: Consolidates four critical gauges into a single unit, freeing up valuable dashboard space.
- At-a-Glance Monitoring: Provides a centralized and easily readable display of essential vehicle parameters.
- Enhanced Awareness: Allows for continuous monitoring of engine health (temperature and pressure) and fuel levels, promoting proactive maintenance and preventing potential issues.
- Simplified Installation (with included sensors): The inclusion of the necessary temperature and pressure sensors, along with wiring harnesses, streamlines the installation process for these critical readings.
- Metric Convenience: Offers water temperature readings in Celsius for users who require or prefer this unit.
- Integrated Alerts: The built-in warning light provides immediate notification of potential problems.
FEATURES:
- Included Sensors: Comes equipped with a 100 psi pressure sensor and a Speedhut temperature sensor, providing the necessary components for immediate oil pressure and water temperature monitoring.
- Complete Wiring: Ships with all essential wiring harnesses for power, lighting, and sensor connections, simplifying the installation process.
- Warning Light Integration: Features a built-in warning light for immediate alerts on critical parameters.
-
