Description

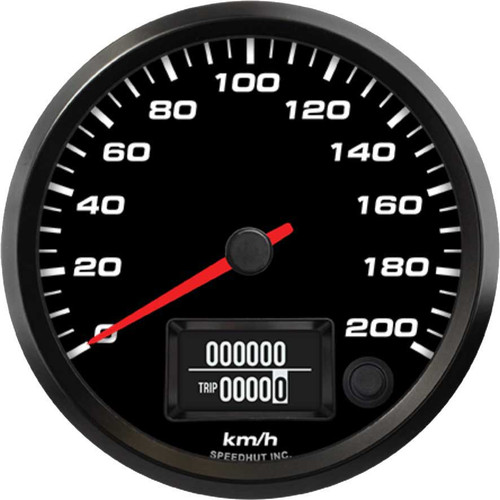

The Speedhut 4" EV Orion 200 km/h Speedometer Gauge (FOR4-S3-EV) is a specialized instrument designed to provide accurate and reliable speed readings for electric vehicles. Engineered for seamless integration with your EV's existing systems, this 4-inch (100mm) gauge utilizes advanced CAN-Bus technology to communicate directly with your vehicle's electronic control unit (ECU). This eliminates the need for traditional speed sensors, resulting in a cleaner installation and more precise data. Built with quality and performance in mind, this speedometer is an essential component for monitoring your EV's speed performance.
KEY FEATURES AND BENEFITS:
- Precise Speed Monitoring: Accurately displays your electric vehicle's speed up to 200 km/h using a direct CAN-Bus connection.
- Effortless Integration: Designed to work with most aftermarket EV control units via a 500K baud rate CAN-Bus system.
- Simplified Installation: Connects directly to the EV's CAN-Bus network, removing the requirement for conventional speed sensors. Fits into a standard 3.93" (100mm) mounting hole.
- Metric Measurement: Provides speed readings in kilometers per hour (km/h), the standard metric unit for speed.
- Optional Indicators: Offers the possibility to connect 12 Volt activated turn signals and a high beam indicator for added functionality (requires separate wiring).
- Complete Wiring Solution: Ships with all necessary harnesses for power, lighting, and CAN-Bus connectivity, ensuring a straightforward installation process.
SPECIFICATIONS:
- Gauge Type: Speedometer
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0-200 km/h
- Size: 4 inch (100mm)
- Hole Size: 3.93 inches (100mm)
- Standard or Metric: Metric
- Included with Purchase:
- 3 ft Power & Lighting Harness - for LED Lit Gauges and Clocks
- EV CAN Jumper Harness
- EV CAN Harness
HOW TO USE:
- Mount the Gauge: Locate a suitable flat surface on your vehicle's dashboard or instrument panel with a minimum depth clearance. Drill a 3.93" (100mm) diameter hole. Insert the Speedhut 4" EV Orion Speedometer Gauge into the hole. Secure it from the back using the provided spin-lock ring or mounting hardware.
- Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle's electrical system. This harness also provides power for the gauge's internal illumination.
- Connect the CAN-Bus Harnesses: Locate the CAN-Bus connection points on your electric vehicle's ECU or control system. Connect the provided EV CAN Jumper Harness and EV CAN Harness to these points and then to the corresponding connector on the back of the Speedhut speedometer gauge. Ensure proper polarity and secure connections.
- Optional Indicator Wiring (If Applicable): If you choose to use the optional turn signal and high beam indicators, connect the 12 Volt output wires from your vehicle's turn signal and high beam circuits to the designated input wires on the Speedhut gauge. Refer to the gauge's wiring diagram for specific connections.
- Verify Functionality: Once all connections are made, power on your electric vehicle. The Speedhut speedometer should illuminate, and the pointer should indicate the speed based on the data received from the ECU via the CAN-Bus. Test the optional turn signals and high beam indicator if connected.
BENEFITS OF USING THE SPEEDHUT 4" EV ORION 200 KM/H SPEEDOMETER GAUGE (FOR4-S3-EV):
- Accurate Speed Readings: Provides precise and real-time speed information directly from your EV's computer system, ensuring reliable data.
- Clean and Modern Installation: The CAN-Bus connectivity eliminates the clutter and complexity of traditional mechanical or sensor-based speedometer installations.
- Seamless EV System Integration: Specifically designed to communicate effectively with a wide range of aftermarket electric vehicle control units.
- Clear and Easy-to-Read Display: The 4-inch analog gauge offers a classic and easily understandable visual representation of your vehicle's speed.
- Robust and Reliable: Built with quality components to withstand the demands of automotive environments.
- Direct Wiring Included: Comes with all the necessary wiring harnesses, simplifying the installation process and saving you time and effort.
FEATURES:
- Direct CAN-Bus Interface: Communicates directly with the EV's ECU at a 500K baud rate for accurate speed data.
- Dedicated EV Design: Specifically engineered for the unique requirements and communication protocols of electric vehicles.
- Standard 4-Inch Size: Fits common gauge mounting locations with a 3.93" (100mm) cutout.
- Metric Speed Display: Clearly shows speed in kilometers per hour (km/h).
- Optional 12V Triggered Inputs: Allows for connection of external 12 Volt signals for turn signals and high beam indication.
- Included Wiring Harnesses: Comes complete with power, lighting, and EV CAN-Bus connection cables for immediate installation.
-
