Speedhut 4" Quad Met Water Temp/Volts/Oil PSI/Fuel Level (R4-QG1-REV)

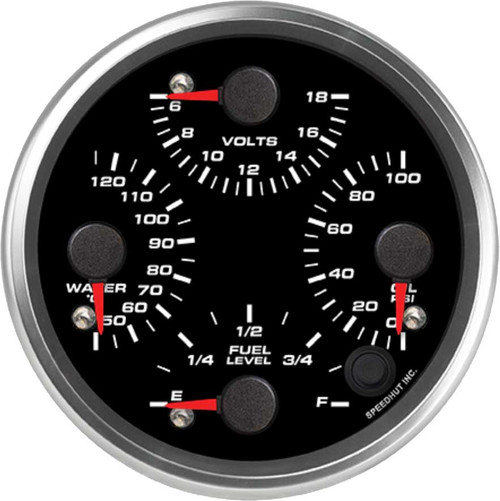

The Speedhut 4" Quad Met Water Temp/Volts/Oil PSI/Fuel Level (R4-QG1-REV) is a comprehensive instrument designed to provide a consolidated view of your vehicle's most critical operating parameters. This single, 4-inch (100mm) gauge displays water temperature, voltage, oil pressure, and fuel level, offering a space-saving and efficient solution for monitoring your engine's health and fuel status. Engineered for accuracy and ease of installation, this gauge is an excellent upgrade for any driver seeking a complete and clear overview of their vehicle's vital information.

KEY FEATURES AND BENEFITS:

• Four-in-One Functionality: Integrates water temperature, voltage, oil pressure, and fuel level readings into a single, easy-to-read 4-inch gauge.
• Comprehensive Monitoring: Provides essential data on engine temperature (50-125°C), electrical system health (6-18 volts), oil lubrication status (0-100 psi), and remaining fuel (E-F).
• Metric Measurement: Displays water temperature in Celsius, catering to metric system users.
• Warning System: Features a built-in warning light to alert the driver to potential issues with temperature, pressure, or voltage.
• Easy Installation: Includes a gauge mounting ring for secure and straightforward dashboard integration into a 3.93-inch (100mm) hole.
• Fuel Level Compatibility: Designed to work with most aftermarket and factory fuel level senders with a resistance of 300 ohms or less (calibration may be required).
• Complete Package: Ships with all necessary wiring harnesses and sensors for immediate installation of temperature and pressure monitoring.

SPECIFICATIONS:

• Gauge Type: Quad Gauge (Water Temperature, Volts, Oil Pressure, Fuel Level)
• Voltage Range: 6-18 volts
• Oil Pressure Range: 0-100 psi
• Fuel Level Range: Empty (E) to Full (F) (compatible with senders ≤ 300 ohms)
• Water Temperature Range: 50-125 °C
• Size: 4 inches (100mm)
• Hole Size: 3.93 inches (100mm)
• Standard or Metric: Metric (Celsius for Water Temperature)
• Warning Light: Yes
• Included:
• 3 ft Power & Lighting Harness
• Pressure Sensor (100 psi)
• Wiring Harness (2-Wire Cable)
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Speedhut Temperature Sensor
• Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.93-inch (100mm) diameter hole in your dashboard. Insert the Speedhut Quad Gauge into the hole and secure it from the back using the included gauge mounting ring.
2. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a switched 12V source, the ground wire to a suitable ground point, and the lighting wire to your vehicle's dashboard lighting circuit (if desired for illumination).
3. Install the Pressure Sensor: Locate an appropriate port on your engine's oil system. Install the included 100 psi pressure sensor into this port and connect it to the Pressure Gauge Wiring Harness (3-Wire Cable), which then connects to the gauge.
4. Install the Temperature Sensor: Find a suitable location in your engine's cooling system (e.g., thermostat housing, coolant passage). Install the included Speedhut Temperature Sensor and connect it to the Temperature Gauge Wiring Harness (2-Wire Cable), which then connects to the gauge.
5. Connect the Fuel Level Signal: Connect the Wiring Harness (2-Wire Cable) to the output terminal of your vehicle's fuel level sender unit. Ensure compatibility with senders having a resistance of 300 ohms or less. Connect the other end of the harness to the designated fuel level input on the gauge. Note: The fuel level sender itself is not included and may require calibration.
6. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to the wiring diagrams provided in the product documentation.
7. Test the Gauge: Start your vehicle and observe the gauge readings for water temperature, voltage, oil pressure, and fuel level. Ensure the warning light functions as expected for any out-of-range conditions. Calibration of the fuel level gauge may be necessary for accurate readings.

BENEFITS OF USING THE SPEEDHUT 4" QUAD MET WATER TEMP/VOLTS/OIL PSI/FUEL LEVEL (R4-QG1-REV):

• Centralized Information: Provides a single point of monitoring for four crucial vehicle parameters, reducing clutter and improving driver awareness.
• Early Problem Detection: Allows for the early identification of potential issues such as overheating, low oil pressure, or charging system malfunctions, potentially preventing costly repairs.
• Accurate Readings: Engineered for precise measurement of voltage, pressure, temperature, and fuel level.
• Enhanced Vehicle Knowledge: Gives drivers a better understanding of their vehicle's real-time operating conditions.
• Simplified Installation: The included wiring and mounting hardware facilitate a relatively straightforward installation process.
• Clean Dashboard Aesthetics: Offers a streamlined and professional look compared to multiple individual gauges.

FEATURES:

• Integrated Display: Combines readings for water temperature, volts, oil pressure, and fuel level in one unit.
• Wide Voltage Compatibility: Operates effectively within a 6 to 18 volt electrical system.
• Precise Pressure Measurement: Monitors oil pressure up to 100 pounds per square inch.
• Broad Fuel Sender Support: Compatible with most fuel level sensors that have a resistance of 300 ohms or less.
• Standard 4-Inch Size: Fits common 4-inch (100mm) gauge openings.
• Secure Mounting: Comes with a ring to ensure the gauge is firmly fixed in the dashboard.
• Visual Alerts: Equipped with a warning light to indicate abnormal operating conditions.
• Included Sensors: Comes with dedicated sensors for both oil pressure and water temperature.
• Complete Wiring: Includes all necessary harnesses for power, lighting, and sensor connections.
