Description

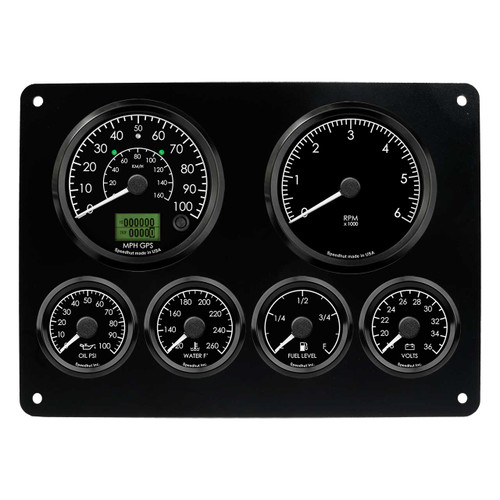

The Speedhut Humvee 6-Gauge Kit (HV-6KIT-001) provides a comprehensive and direct replacement solution for the instrument panel of military series High Mobility Multipurpose Wheeled Vehicles (HMMWVs). This kit is specifically engineered for HMMWVs and is not compatible with civilian Hummer H1 models. It offers enhanced functionality and accurate readings for essential vehicle parameters, ensuring reliable monitoring in demanding conditions. The included custom dash panel facilitates a seamless and integrated installation.
KEY FEATURES AND BENEFITS:
- The GPS speedometer delivers precise speed readings without the need for traditional sensors or calibration.
- The diesel tachometer is specifically designed for diesel engines, providing accurate RPM information.
- Includes gauges for oil pressure, water temperature, voltmeter (18-36V systems), and fuel level.
- Direct OEM replacement design: Simplifies the installation process.
- Uses existing OEM sensors: Eliminates the need for additional sensor installation.
- LED-lit dials: Ensure excellent visibility in all lighting conditions.
- Power compatibility: Operates on 24-volt systems found in most military HMMWVs.
- Included dash panel: Ensures a perfect fit and finish in Humvees.
SPECIFICATIONS:
- GPS Speedometer: Fits 3.375" (85mm) dash hole.
- Diesel Tachometer: Fits 3.375" (85mm) dash hole.
- Water Temperature Gauge: Fits 2.062" (52mm) dash hole.
- 18-36 Volt Gauge: Fits 2.062" (52mm) dash hole.
- Oil Pressure Gauge: Fits 2.062" (52mm) dash hole.
- Fuel Level Gauge: Fits 2.062" (52mm) dash hole.
- Power Compatibility: 18-36 Volts
- Daytime Display: Black Background with White Numbers
- Nighttime Display: Numbers LED Green Glow
- Pointer: Standard White (Glows Red)
- Bezel: Stealth Black
- Window: Flat
- Included: Humvee 6-Gauge Dash Panel
HOW TO USE:
- Remove the Existing Gauges and Dash Panel: Carefully detach the factory gauges and the existing dash panel from your military Humvee. Ensure the vehicle's power is disconnected before starting.
- Install the New Dash Panel: Mount the included Speedhut 6-gauge dash panel into the designated location. Ensure it is securely fastened.
- Connect the Gauges:
- GPS Speedometer: Connect the power (18-36V) and ground wires. Mount the waterproof GPS antenna in a location with a clear view of the sky and connect it to the speedometer.
- Diesel Tachometer: Connect the power and ground wires. Locate the "A/C," "W," or "R" terminal on the OEM alternator and connect the tachometer signal wire to it.
- Water Temperature Gauge: Connect the power and ground wires. Ensure the gauge is properly connected to the existing OEM water temperature sensor.
- 18-36 Volt Gauge: Connect the power and ground wires to a suitable 18-36V power source in your vehicle.
- Oil Pressure Gauge: Connect the power and ground wires. Ensure the gauge is properly connected to the existing OEM oil pressure sensor.
- Fuel Level Gauge: Connect the power and ground wires. Ensure the gauge is properly connected to the existing OEM fuel level sending unit.
- Secure the Gauges: Carefully insert each gauge into the corresponding openings in the new dash panel and secure them from the back.
- Verify Connections: Double-check all wire connections to ensure they are secure and correct.
- Restore Power: Reconnect the vehicle's power.
- Test the Gauges: Start the vehicle and observe the gauges to ensure they are functioning correctly and providing accurate readings.
BENEFITS OF USING THE SPEEDHUT HUMVEE 6-GAUGE KIT (HV-6KIT-001):
- The GPS Speedometer offers highly accurate speed measurement without mechanical connections or calibration needs.
- The Diesel Tachometer delivers precise RPM readings tailored for diesel engines.
- Monitoring Oil Pressure and Water Temperature helps prevent mechanical issues and ensures optimal engine performance.
- The 18-36 Volt Gauge provides critical insight into the vehicle’s electrical system status.
- The Fuel Level Gauge enables accurate monitoring of fuel reserves.
- Custom Humvee 6-Gauge Dash Panel allows for seamless and consistent installation.
- Utilizes existing OEM sensors for simplified, efficient installation.
- LED-lit dials ensure excellent visibility in any lighting condition.
FEATURES:
- Provides precise speed readings using GPS technology, eliminating the need for external sensors or calibration.
- Specifically designed for diesel engines, ensuring accurate RPM measurement directly from the alternator.
- Monitors the critical oil pressure levels within the engine to help prevent damage.
- Displays the voltage of the 18-36 volt electrical system, crucial for maintaining vehicle operation.
- Tracks the engine's coolant temperature to prevent overheating.
- Indicates the amount of fuel remaining in the tank for effective trip planning.
- Directly replaces the factory gauges in military HMMWVs for a seamless fit.
- Illuminated with LED technology for clear visibility during both day and night operation.
- Maintains the authentic Humvee styling with specific ticks and numbers on the gauge faces.
- Features a rugged and non-reflective stealth black bezel with a flat window.
- Comes with a dedicated dash panel engineered for a perfect fit in military Humvees.
-
