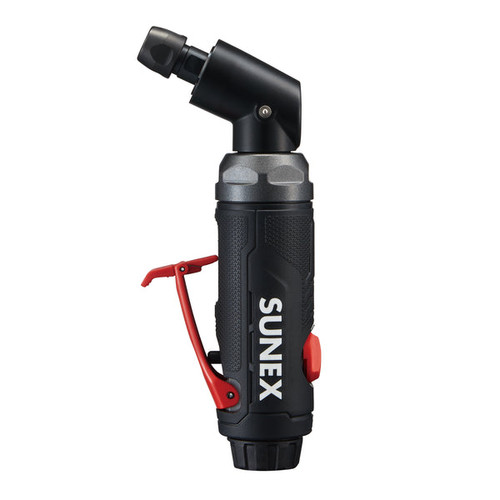

Sunex Tools 0.5HP 115-Degree Angle Die Grinder (SX5204)

Sunex Tools 0.5HP 115-Degree Angle Die Grinder (SX5204) is a specialized pneumatic tool designed to bridge the gap between straight and 90-degree grinders. Its primary function is to provide high-speed rotation for accessories used in metalwork, such as carbide burrs, mounted stones, and sanding discs. By utilizing a 115-degree head angle, this tool allows operators to maintain a more natural wrist position while working in cramped or angled spaces, such as engine compartments, wheel wells, and internal frame structures.

Key Features and Benefits:

• 115-Degree Head Geometry: The offset angle provides ergonomic advantages, improving visibility of the work surface and access to tight corners compared to standard right-angle tools.
• High-Torque 0.5HP Motor: Designed for demanding applications like weld dressing and heavy gasket removal without stalling, ensuring consistent material removal.
• Precision Accessory Retention: The 1/4" three-piece collet system provides a uniform grip on accessory shanks, minimizing vibration and ensuring tool balance during high-speed operation.
• User-Focused Ergonomics: The composite body and overmold grip insulate the hand from cold temperatures common in air tools, while the lightweight 1.6 lb frame reduces physical effort for long tasks.
• Safety and Control: An integrated safety lock-off trigger prevents unintentional starts, and the adjustable power regulator allows users to fine-tune RPM to suit specific materials and tasks.

Specifications:

• Motor Power: 0.5 HP
• Free Speed: 18,000 RPM
• Collet Size: 1/4" (3-piece design)
• Air Consumption: 6.0 CFM
• Operating Pressure: 90 PSI
• Air Inlet: 1/4" NPT
• Tool Weight: 1.6 lbs
• Head Angle: 115 Degrees
• Housing Material: Composite
• What is Included: SX5204 115-Degree Angle Die Grinder, 1/4" Collet, and Collet Wrenches

How to Use:

• Safety Preparation: Wear appropriate personal protective equipment, including safety glasses, ear protection, and gloves.
• Lubrication: Apply 2Ð3 drops of pneumatic tool oil directly into the 1/4" NPT air inlet before connecting the air hose.
• Accessory Installation: Insert the shank of your 1/4" grinding or polishing accessory into the collet and tighten the collet nut securely using the included wrenches.
• Air Connection: Connect the tool to a regulated air supply set to 90 PSI, ensuring your compressor can provide at least 6.0 CFM for continuous operation.
• Adjusting Speed: Use the adjustable power regulator to set the desired maximum speed for your specific application.
• Operation: Disengage the safety lock-off and slowly depress the trigger to start the tool. Apply the accessory to the workpiece, allowing the tool's speed to handle the work rather than applying excessive pressure.
• Shutdown: Release the trigger and wait for the accessory to stop spinning completely before setting the tool down. Disconnect the air line when the task is finished.

Benefits of Using Sunex Tools 0.5HP 115-Degree Angle Die Grinder (SX5204):

• Improved Efficiency: The 115-degree head angle is beneficial for surface prep tasks where a 90-degree tool would be too tall, and a straight tool would be too long.
• Heavy-Duty Performance: The 0.5HP motor allows for porting and weld grinding without losing speed, leading to a more uniform finish.
• Reduced User Fatigue: The lightweight composite construction and vibration-reducing grip prevent hand numbness during detailed work.
• Safer Operation: The rear exhaust and safety trigger manage debris and prevent accidental activation, facilitating a cleaner work environment.

Features:

• 3-Piece Collet Design: Reduces runout and improves bit balance.
• Rear-Facing Exhaust: Keeps air and debris away from the operator's face.
• Variable Speed Trigger: Offers precise control over material removal rates.
• Thermal-Insulated Composite Housing: Comfortable use in cold environments.
• Safety Lever Mechanism: Prevents accidental tool activation.
• High-Speed Capability: 18,000 RPM for fine detailing and polishing.
• Compact Head Profile: Improves line-of-sight during precision porting.
• Non-Slip Overmold Handle: Enhances tool stability and grip.
