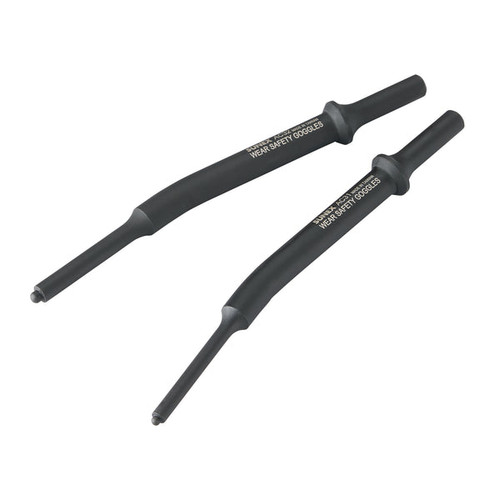

Sunex Tools 2-Piece Air Hammer Chisel Hinge Pin Driver in Tool Roll (ACS2)

Sunex Tools 2-Piece Air Hammer Chisel Hinge Pin Driver in Tool Roll (ACS2) provides a targeted solution for one of the more difficult tasks in automotive bodywork: the removal of door hinge roll pins. Standard straight punches often lack the necessary clearance to reach pins without damaging the surrounding door panel or frame. This set addresses that challenge with an angled shaft design that allows the technician to maintain a direct line of force on the pin while the air hammer remains at a safe distance from the vehicle's body.

Key Features and Benefits:

• Optimized Access: The angled 7.5-inch shafts provide the necessary offset to reach hinge pins located in deep or narrow door recesses.
• Reduced Wear: The patented chamfer design is engineered to extend the life of the chisel by 50% by managing the impact energy more efficiently.
• Corrosion Resistance: A black oxide finish is applied to each driver to provide a barrier against moisture and chemical exposure.
• Pneumatic Compatibility: The .401 shank size ensures that these tools can be used with the vast majority of standard air hammers found in professional shops.
• Organized Storage: The 600D polyester roll pouch protects the tools and keeps them paired together, reducing the risk of losing individual sizes.

Specifications:

• Shank Size: .401
• Driver Sizes: 6mm and 8mm
• Driver Length: 7.5 inches
• Material: Enhanced alloy steel with Black Oxide finish
• Pouch Material: 600D Polyester with water-repellent coating
• Unrolled Dimensions: 4Ó x 13Ó
• Rolled Dimensions: 1.9Ó x 8.07Ó
• Included in Box:
  • (1) 6mm Angled Hinge Pin Driver
  • (1) 8mm Angled Hinge Pin Driver
  • (1) Custom 600D Polyester Roll Pouch

How to Use:

• Identify Pin Size: Determine if the door hinge roll pin is 6mm or 8mm and select the corresponding driver from the roll pouch.
• Inspect the Tool: Ensure the .401 shank is clean and free of debris before insertion.
• Insert into Air Hammer: Slide the shank into the air hammer's retainer and secure it according to the manufacturer's instructions.
• Position the Tip: Place the tip of the 7.5-inch driver directly against the hinge roll pin.
• Align the Angle: Rotate the tool so that the angled shaft provides maximum clearance from the vehicle's door panel.
• Apply Pressure: Hold the air hammer firmly and apply steady pressure against the pin.
• Operate the Hammer: Engage the trigger in short bursts to drive the pin out of the hinge assembly.
• Store After Use: Clean the drivers and return them to the 600D pouch, securing the hook-and-loop strap.

Benefits of Using Sunex Tools 2-Piece Air Hammer Chisel Hinge Pin Driver in Tool Roll (ACS2):

• Reduced Damage Risk: Angled drivers minimize the risk of cosmetic damage to a customer's vehicle by allowing technicians to avoid forcing straight tools into tight spots.
• Durable Construction: Specialized materials and the chamfered striking end result in fewer tool replacements and consistent performance on seized or rusted pins.

Features:

• Angled Tool Geometry: Specifically designed for automotive door hinge clearance.
• Patented Beveled Edge: Prevents material deformation on the striking face.
• Standardized .401-Inch Shank: Provides universal fitment with pneumatic chisels.
• Water-Repellent Storage Roll: Heavy-duty 600D polyester with a secure hook-and-loop strap keeps tools organized.
• Dual-Size Availability: Covers both 6mm and 8mm automotive applications.
• Chemical-Resistant Coating: The black oxide finish prevents surface rust.
