Tracerline Mini-EZ Hybrid Vehicle A/C Dye Injection Kit (TP9812-BX)

The Tracerline Mini-EZ Hybrid Vehicle A/C Dye Injection Kit (TP9812-BX) is an indispensable tool for automotive technicians working with hybrid and electric vehicles. This specialized kit provides a safe and highly effective method for pinpointing elusive leaks in A/C systems, which require particular care due to their integrated electrical components and high-voltage compressors. Designed with precision, the kit includes everything needed to accurately inject fluorescent dye into the system, allowing for clear visual detection of refrigerant leaks under UV light.

KEY FEATURES AND BENEFITS:

• Hybrid/EV Safe Dye: Includes specialized co-solvent-free ester dye with high dielectric qualities, ensuring it is completely safe for electrically driven compressors and other sensitive hybrid system components.
• Versatile Compatibility: Equipped with brass swivel-type couplers for both R-134a and R-1234yf refrigerant systems, providing broad compatibility for various hybrid and electric vehicle models.
• Precise Dye Delivery: The EZ-Ject™ dye injector assembly allows for accurate and controlled injection of dye into the A/C system, whether it's off or running, preventing over- or under-dosing.
• Convenient Single-Dose Cartridges: Comes with three pre-filled 0.25 oz (7 ml) Mini-EZ™ cartridges, each servicing one vehicle, simplifying the process and reducing waste.
• Secure & Clean Application: Cartridges are individually wrapped in moisture-resistant foil with a desiccant bag, maintaining dye integrity and preventing contamination. The injector design minimizes spills during use.

SPECIFICATIONS:

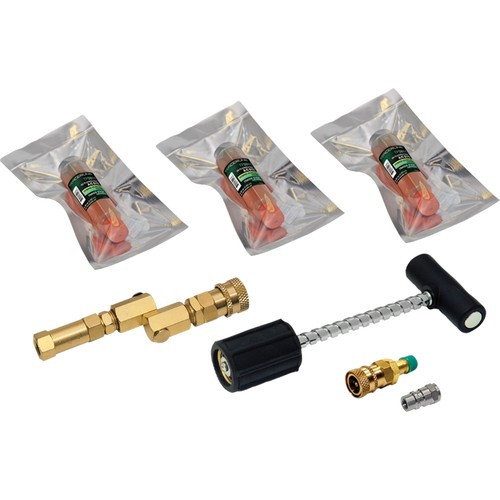

• Included in the Kit (TP9812-BX):
• (3) TP9811-P3 0.25 oz (7 ml) Mini-EZ™ single-dose Hybrid/Ester dye cartridges
• (1) TP9845 EZ-Ject™ dye injector assembly
• (1) TP9813 Brass, swivel-type R-134a coupler for EV/Hybrid with check valve and purge fitting
• (1) TP28 Brass, swivel-type R-1234yf coupler for Hybrid/EV with check valve and purge fitting

HOW TO USE:

1. Prepare the System: Ensure the vehicle's A/C system is accessible and you have appropriate safety gear, including gloves and eye protection.
2. Select Cartridge: Open one of the individually wrapped TP9811-P3 Mini-EZ™ dye cartridges.
3. Load Injector: Insert the chosen dye cartridge into the TP9845 EZ-Ject™ dye injector assembly.
4. Attach Coupler: Select the appropriate brass swivel-type coupler (TP9813 for R-134a or TP28 for R-1234yf) for the vehicle's A/C system. Securely attach it to the EZ-Ject™ injector.
5. Connect to A/C System: Connect the coupler to the low-side service port of the vehicle's A/C system. Ensure a firm connection.
6. Purge Air: Use the purge fitting on the coupler to release any trapped air from the hose before injecting the dye.
7. Inject Dye: Depress the plunger on the EZ-Ject™ injector to introduce the fluorescent dye into the A/C system. The injector is designed to overcome system pressure, so it can be done with the system off or running.
8. Run System: Start the vehicle and run the A/C system for approximately 10–15 minutes to allow the dye to circulate thoroughly with the refrigerant.
9. Inspect for Leaks: Using a compatible UV leak detection lamp (sold separately), inspect all A/C components, hoses, and connections for areas where the fluorescent dye has seeped out, indicating a leak.

BENEFITS OF USING TRACERLINE MINI-EZ HYBRID VEHICLE A/C DYE INJECTION KIT (TP9812-BX):

• Safety for Hybrid/EV Components: Specifically formulated dye ensures no damage to sensitive electrical components or high-voltage compressors unique to hybrid and electric vehicles.
• Accurate Leak Detection: Provides a visual, highly effective method for precisely locating even small refrigerant leaks, preventing guesswork and repeated repairs.
• Time and Cost Efficient: Quickly identifies leaks, reducing diagnostic time and the need for costly trial-and-error repairs, ultimately saving both time and money.
• Environmental Responsibility: Helps in identifying and repairing leaks, reducing refrigerant emissions into the atmosphere and contributing to environmental protection.
• Professional Standard: Utilizes industry-recognized Tracerline technology, ensuring reliable performance and meeting the specific needs of modern hybrid and EV A/C systems.

FEATURES:

• Hybrid/EV-safe, co-solvent-free ester dye engineered for electrical component safety
• High dielectric formulation prevents electrical conductivity risks
• Pre-measured 0.25 oz (7 ml) dye cartridges reduce waste and ensure consistency
• Individually foil-wrapped cartridges with desiccant bags maintain dye integrity
• EZ-Ject™ system enables simple, accurate dye injection
• Brass swivel-type couplers offer tight-space accessibility and secure attachment
• Dedicated couplers for both R-134a and R-1234yf systems improve versatility
• Integrated check valves prevent refrigerant backflow during injection
• Purge fittings allow for efficient air removal from the lines
• Kit services up to three vehicles for professional workshop efficiency
• UV-reactive dye ensures quick and reliable refrigerant leak detection
