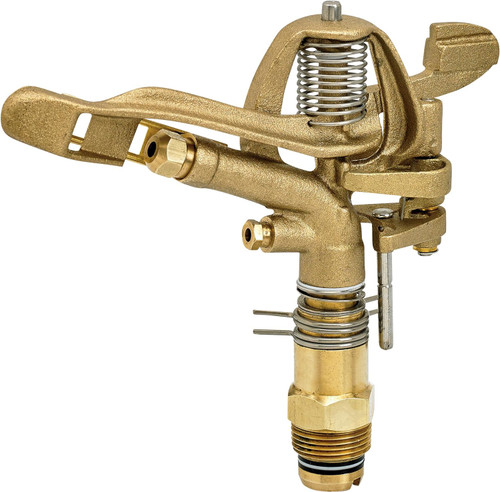

Underhill 1" Part/Full Circle Impact Sprinkler (SI100P)

The Underhill 1" Part/Full Circle Impact Sprinkler (SI100P) is engineered for effective and consistent irrigation of large areas. Crafted from solid brass, this impact sprinkler head is designed to deliver water with high uniformity across expansive lawns, gardens, agricultural fields, and recreational turf. Its reliable operation and robust construction make it a valuable component for any serious irrigation system, ensuring efficient water distribution year after year.

KEY FEATURES AND BENEFITS:

• Expansive Coverage: Delivers water across a significant area, reaching up to a 71-foot radius, making it ideal for large landscapes and fields.
• High Water Output: Operates at a flow rate of 23 gallons per minute (GPM) at 80 PSI, ensuring ample water delivery for healthy growth.
• Adjustable Spray Pattern: Offers both part-circle and full-circle (360°) operation, allowing for precise control over the watering area and preventing overspray.
• Superior Material Quality: Constructed from solid brass, providing excellent resistance to corrosion and wear, which contributes to a long operational life.
• Optimized Water Distribution: Includes a 1/4" range nozzle and a 7/32" close-in nozzle for consistent water distribution and high uniformity across the entire watered zone.
• Consistent Operation: Features a stainless steel drive spring and chemical-resistant bearing seals, ensuring smooth, reliable rotation and minimizing maintenance.
• Versatile Application: Suitable for a wide range of uses, from residential lawns and large gardens to agricultural irrigation and golf course maintenance.

SPECIFICATIONS:

• Connection Type: 1" Male NPT (National Pipe Taper) threaded
• Flow Rate: 23 GPM (gallons per minute)
• Operating Pressure: 80 PSI
• Coverage Radius: 71 feet
• Nozzle Sizes Included: 1/4" (range nozzle), 7/32" (close-in nozzle)
• Construction Material: Solid Brass body, Stainless Steel drive spring
• Included in Product: One Underhill 1" Part/Full Circle Impact Sprinkler Head (SI100P) with standard solid brass nozzle.

HOW TO USE:

1. Prepare Connection: Ensure your water supply line or portable sprinkler base has a 1" female NPT connection.
2. Thread Sprinkler Head: Carefully thread the 1" Male NPT end of the Underhill SI100P sprinkler head into the corresponding female connection. Hand-tighten first, then use a wrench to secure, being careful not to overtighten.
3. Adjust Spray Pattern (if applicable): For part-circle operation, locate the adjustment collars or tabs on the sprinkler head. Set the desired arc by positioning these stops to define the start and end points of the watering area. For full-circle operation, ensure the stops are disengaged or set for a complete 360-degree rotation.
4. Position Sprinkler: Place the sprinkler in the desired location within the area to be irrigated, ensuring it has clear access to the water source.
5. Activate Water Supply: Slowly turn on the water supply to the sprinkler. Observe the spray pattern to confirm adequate coverage and make minor adjustments to placement if necessary.
6. Monitor Performance: Periodically check the sprinkler's operation to ensure consistent rotation and water distribution.

BENEFITS OF USING UNDERHILL 1" PART/FULL CIRCLE IMPACT SPRINKLER (SI100P):

• Provides efficient water application: over large areas, reducing the time and effort required for irrigation.
• Helps conserve water: by distributing it uniformly, minimizing puddling and runoff.
• Contributes to healthier plant growth: and lush turf due to consistent and adequate moisture delivery.
• Offers a long-term irrigation solution: with minimal need for replacement due to its robust construction.
• Reduces operational costs: through its straight-flow design, which minimizes pressure loss and optimizes water use.
• Its adaptability to portable bases: allows for flexible watering strategies in various locations.

FEATURES:

• Heavy-duty brass construction for enhanced resilience.
• Internal stainless steel spring mechanism for smooth impact rotation.
• Bearing assembly hood designed to extend operational life.
• Seals made from chemical-resistant materials to prevent degradation.
• Features a precision-machined solid brass nozzle.
• Designed for low pressure loss, ensuring efficient water flow.
• Equipped with a 1" Male NPT thread for standard connections.
• Ability to switch between partial and complete circular watering patterns.
• Engineered for high performance with minimal maintenance requirements.
• Can be paired with portable sprinkler bases for flexible deployment.
